Digitally controlled insert console

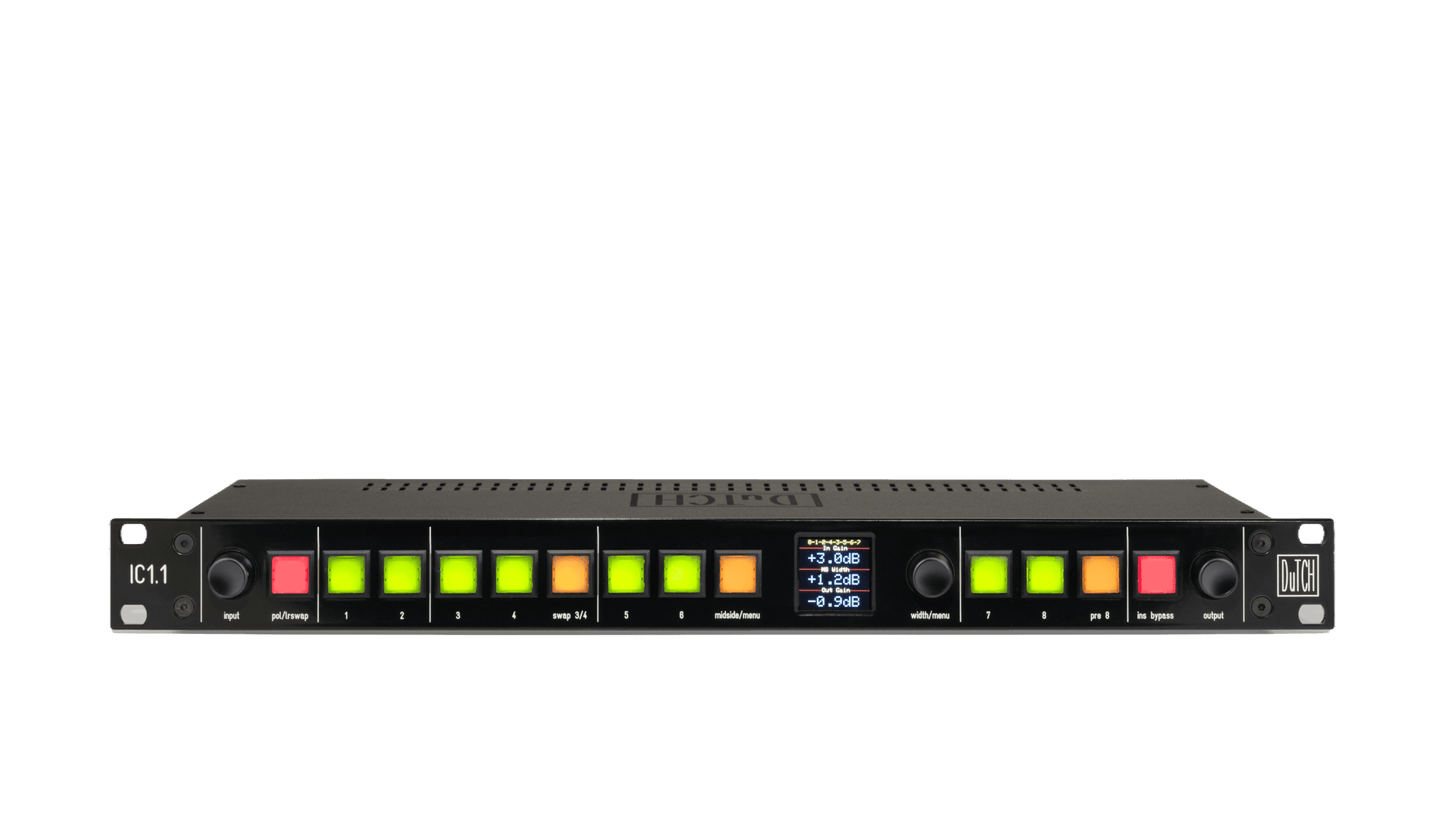

The IC1.1 integrates the circuitry of well-known and proven analog insert consoles with a new computer interface. The IC1.1 can be controlled using the front panel, as well as using a VST3/AU plugin, which allows settings to be saved and automated. With the integrated Ethernet interface, you can easily connect the IC1.1 to your existing network. The IC1.1 provides one stereo input and one stereo output (XLR), as well as eight analog stereo inserts (Tascam DB25). Using sealed relays, all inserts are completely passive, without the electronic switching coloration present in competitors. Inserts 3 and 4 have exchange functionality. Inserts 5 and 6 can also be used in mid/side mode with a bypassable width control with a gain range of +/- 10 dB in 0.1 dB per step. Insert 8 can be swapped between post or pre.

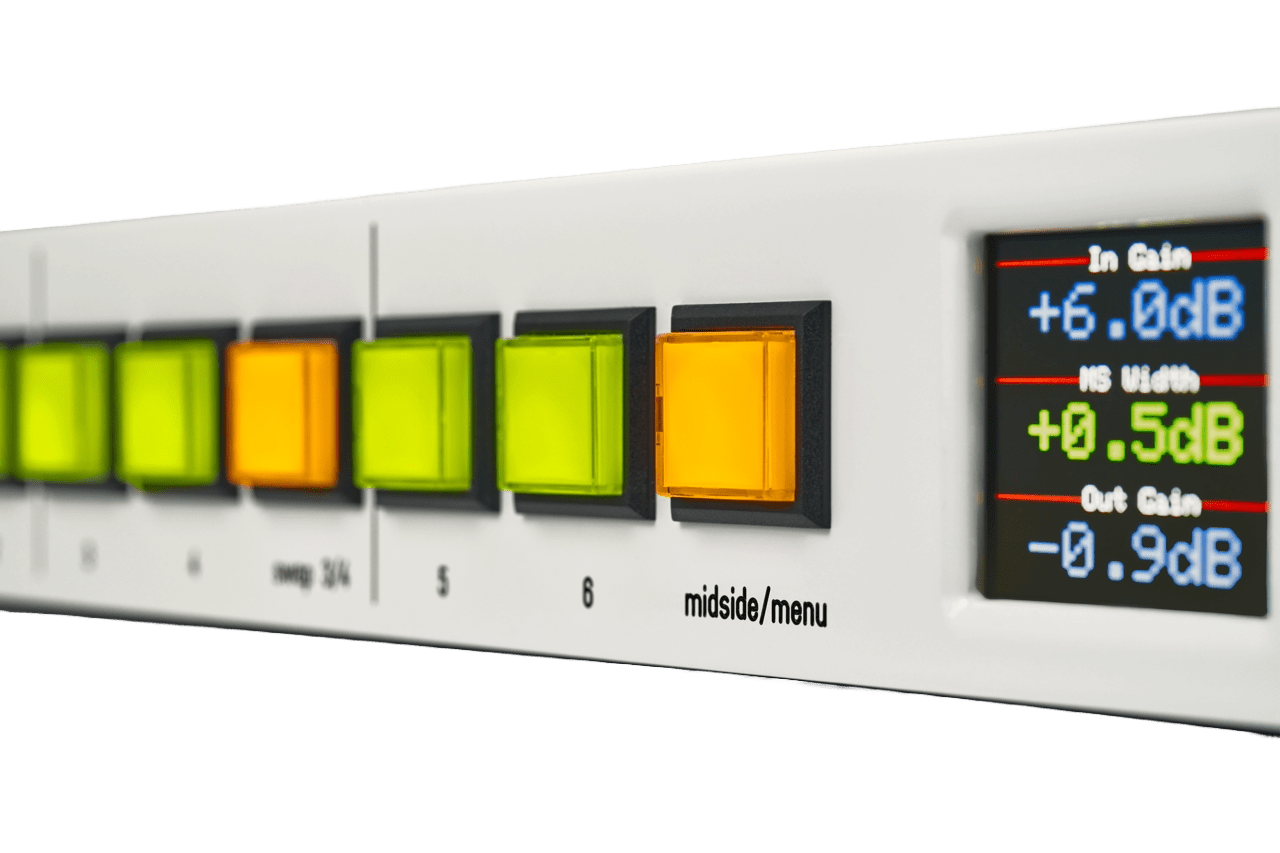

The input and output have an active bypassable gain of 0.1 dB per step with a range of +/-10 dB. Additionally, the output gain can be used as bypass gain compensation for equal level AB comparison when the inserts are bypassed. Input, MS width and output values, insertion order and programmable insertion names are displayed on an easy-to-read screen.
