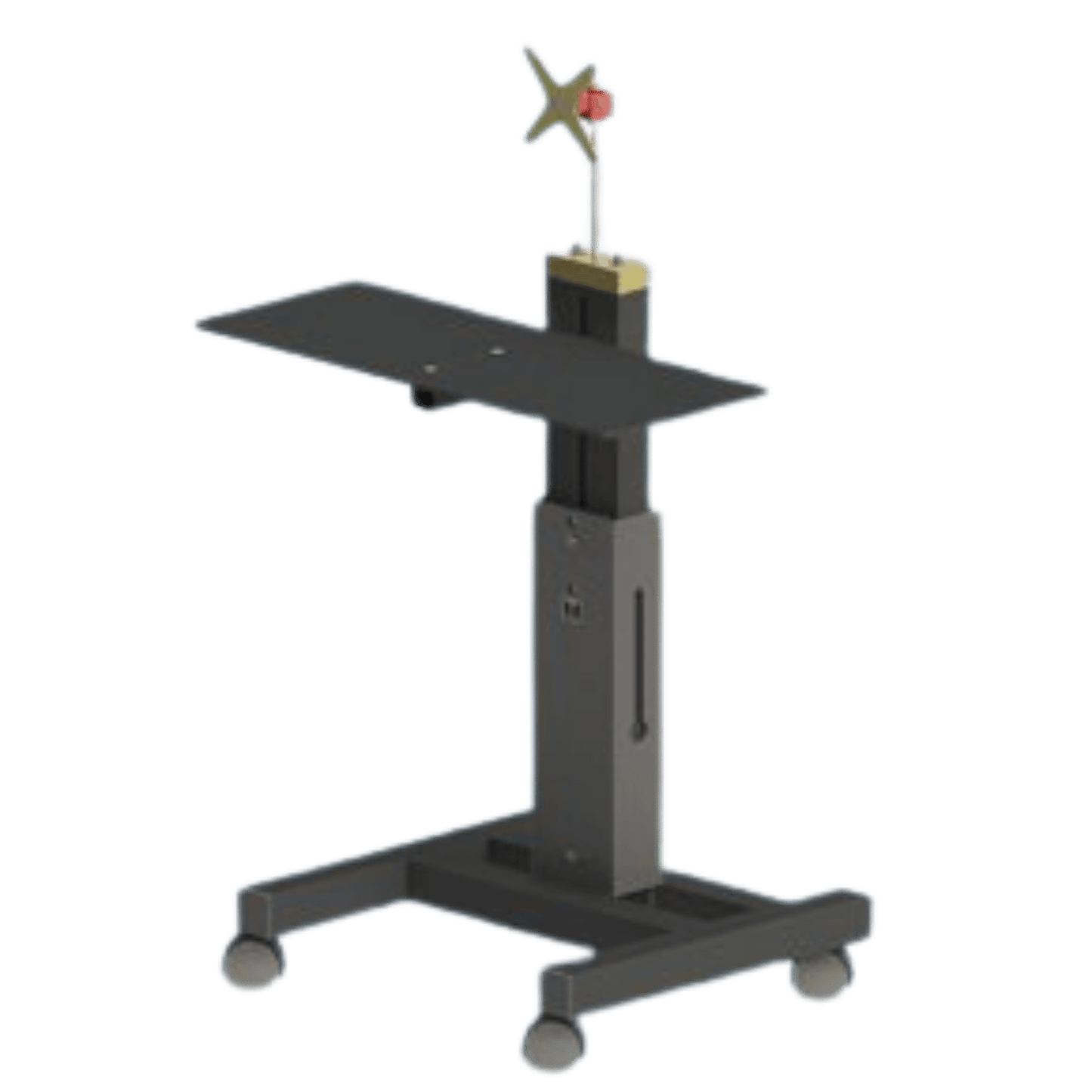

Sound Anchors DAW

Adjustable studio workstation

The Sound Anchors DAW (Digital Audio Workstation) is a stand built specifically to carry a digital audio workstation in the studio: screen, keyboard and mouse. It is heavy and perfectly balanced, and it is solid enough to take years of daily use. It is handcrafted in the USA.

Two heights, adjusted independently

The keyboard platform and the screen mount adjust in height independently of each other. You can match the workstation to your chair height and build, with no compromise between hand position and eye level. On casters, the DAW moves easily around the room and can be stored away when not in use.

Options

The Sound Anchors DAW comes in several configurations. Here is how to read the names:

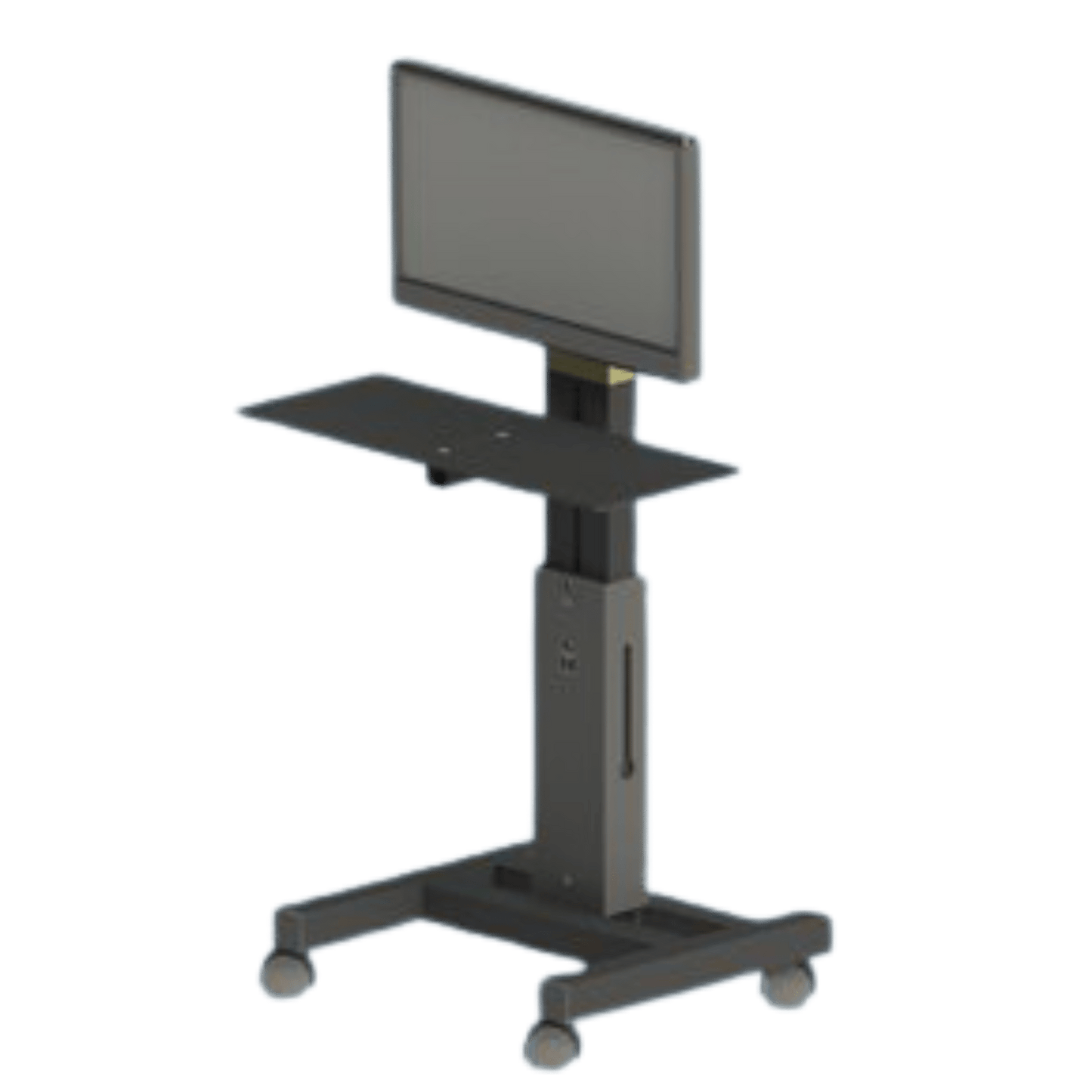

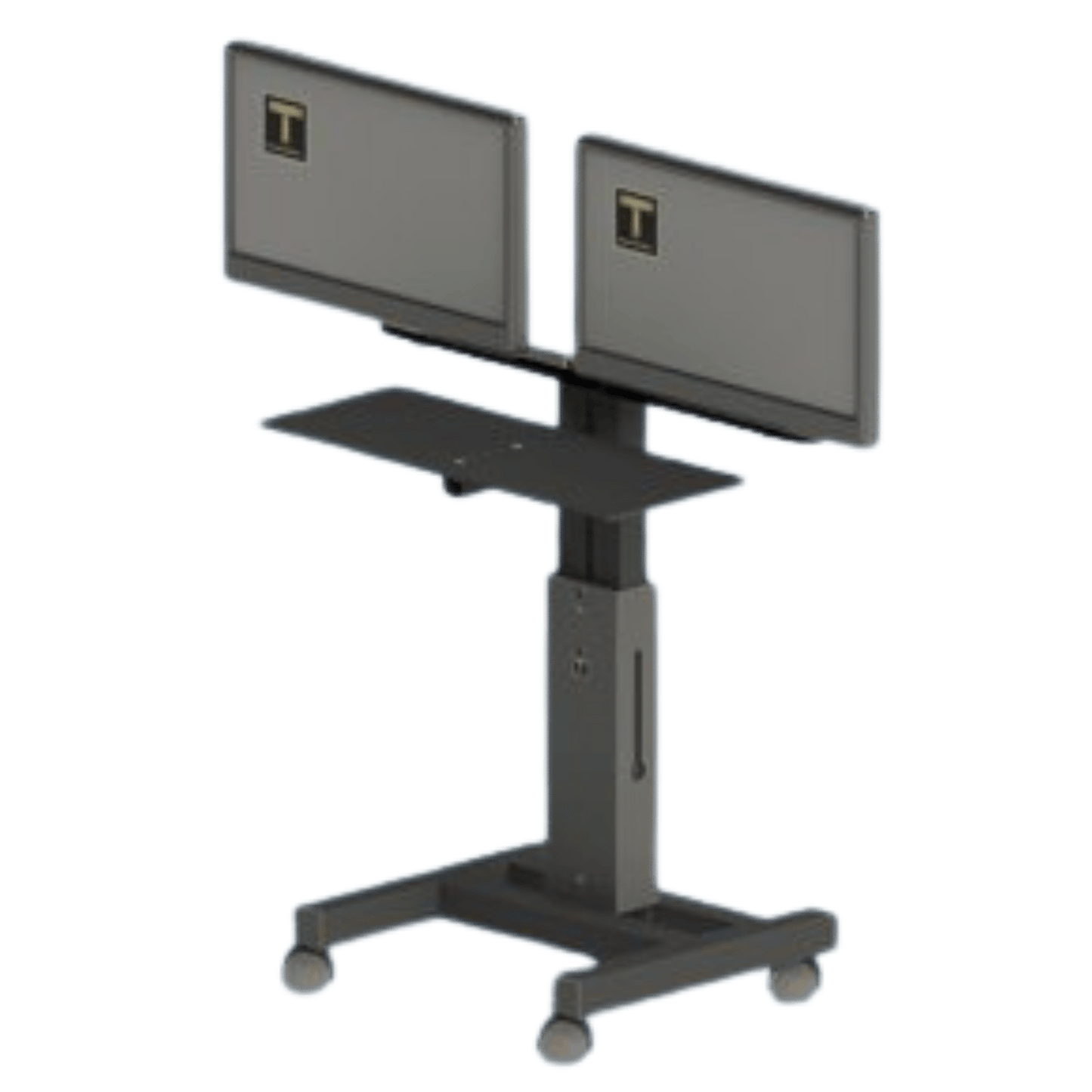

• DAW1X / DAW2X: number of VESA mounts. The DAW1X has one, the DAW2X has two.

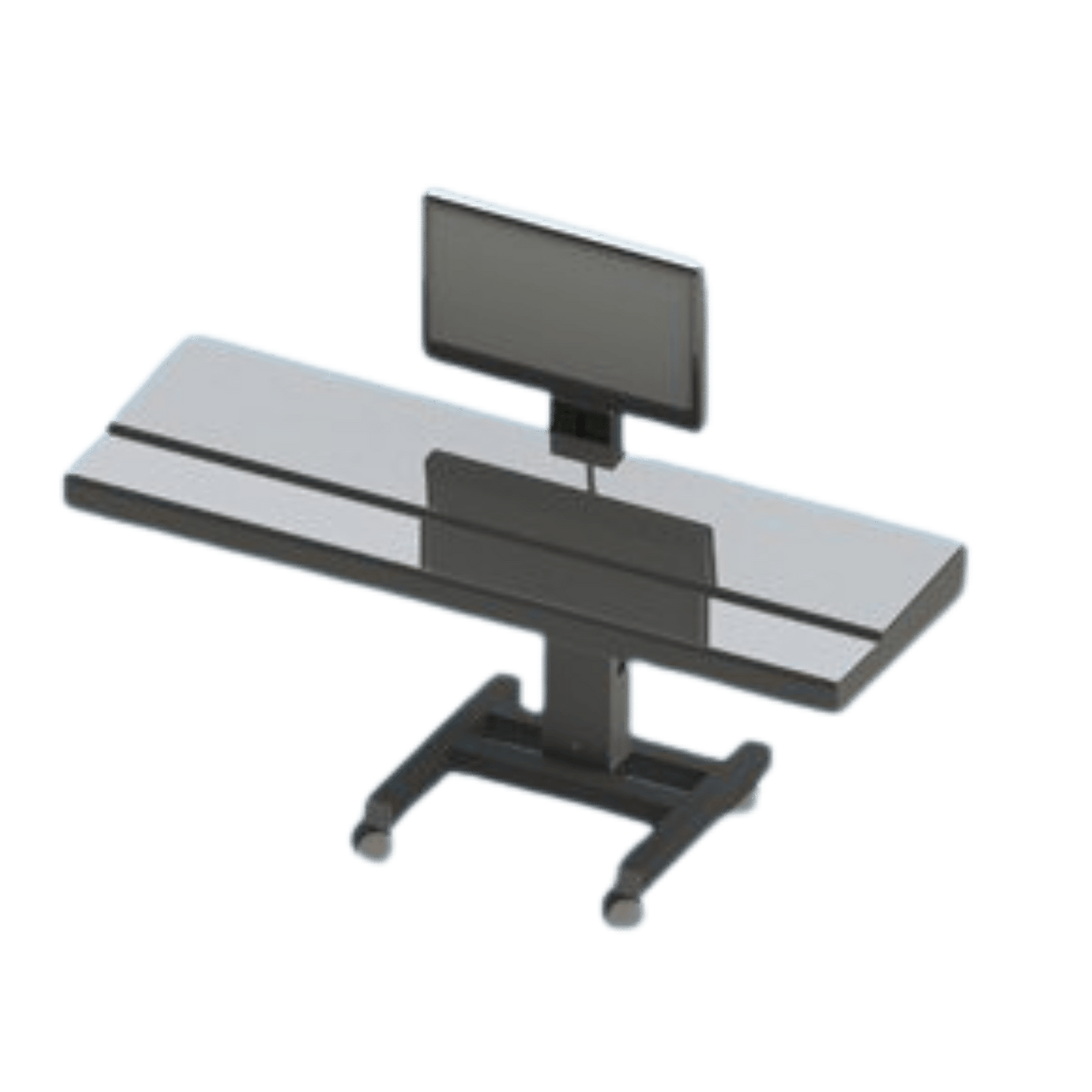

• Standard / double platform: number of platforms. The double version adds a second platform, which lets you slot a MIDI keyboard under the computer keyboard, for example.
• 25 × 10" / 28 × 12": platform size, i.e. approx. 63.5 × 25.4 cm or 71.1 × 30.5 cm.

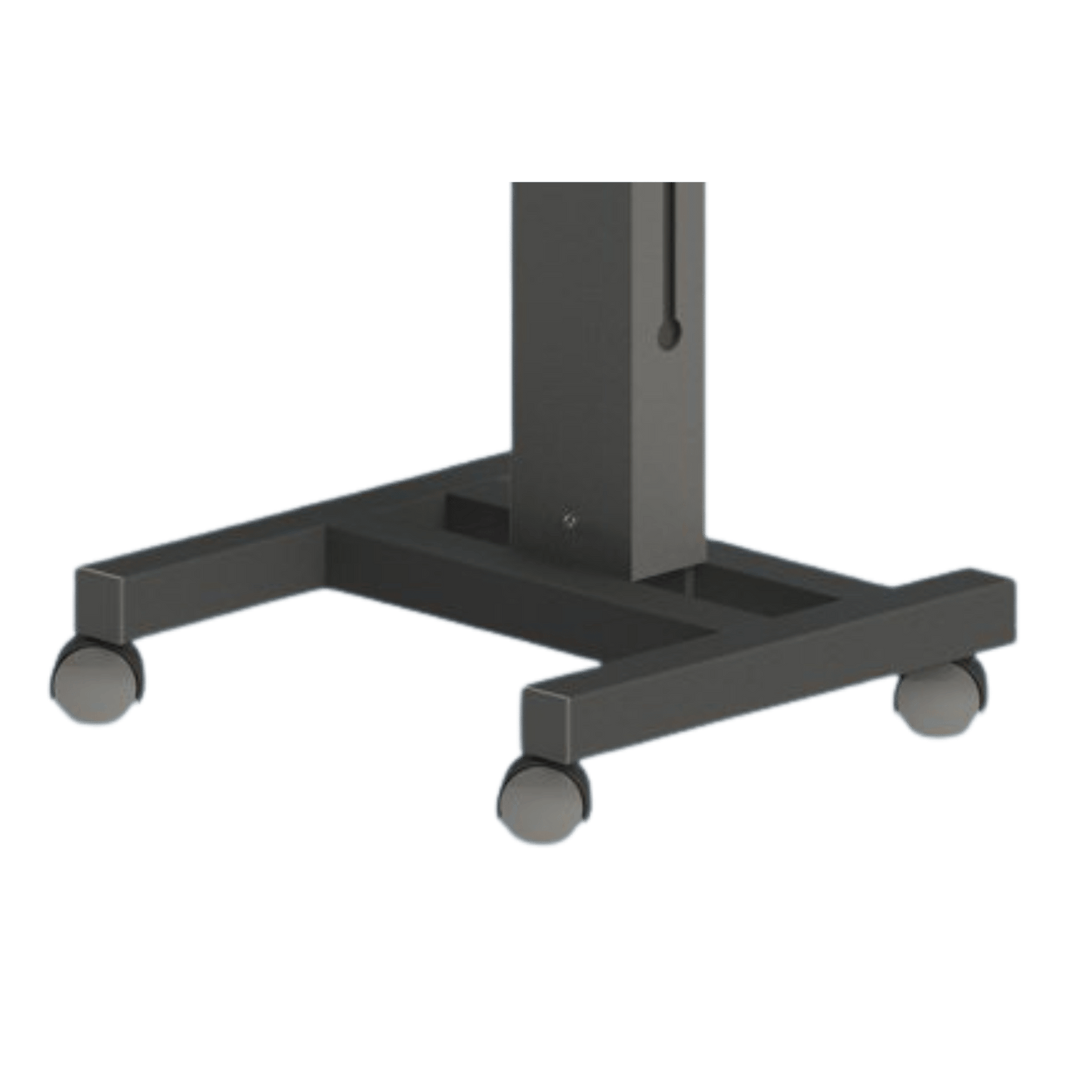

All versions share the same base and uprights, so mounts and platforms can be added or swapped later.

Compatible screens

The Redmount mounts adjust pan and tilt for any VESA-compliant screen. Sound Anchors recommends a screen of up to 32 inches in single configuration, and up to 27 inches per screen in dual configuration; in that case both screens should be identical, or at least the same size and weight.

To set your studio monitors at the right height next to the workstation, Sound Anchors also makes the Sound Anchors ADJ1 stands.

Specifications

• Construction: large-section square steel tubing and heavy steel flat, welded
• Finish: black, light texture
• Weight (DAW1X): approx. 27 kg (60 lb)
• Adjustment: platform height and screen height independent
• Screen mount: Redmount, pan and tilt adjustable
• VESA pattern: 75 × 75 mm and 100 × 100 mm (100 × 200 mm and 200 × 200 mm plates optional)
• Screen mount maximum load: 35 lb (approx. 15.9 kg)
• Platform: 25 × 10" or 28 × 12"
• Casters: twin-wheel, die-cast body, urethane wheels
• Manufacturing: handcrafted in the USA
