Small Diaphragm FET Condenser Microphone

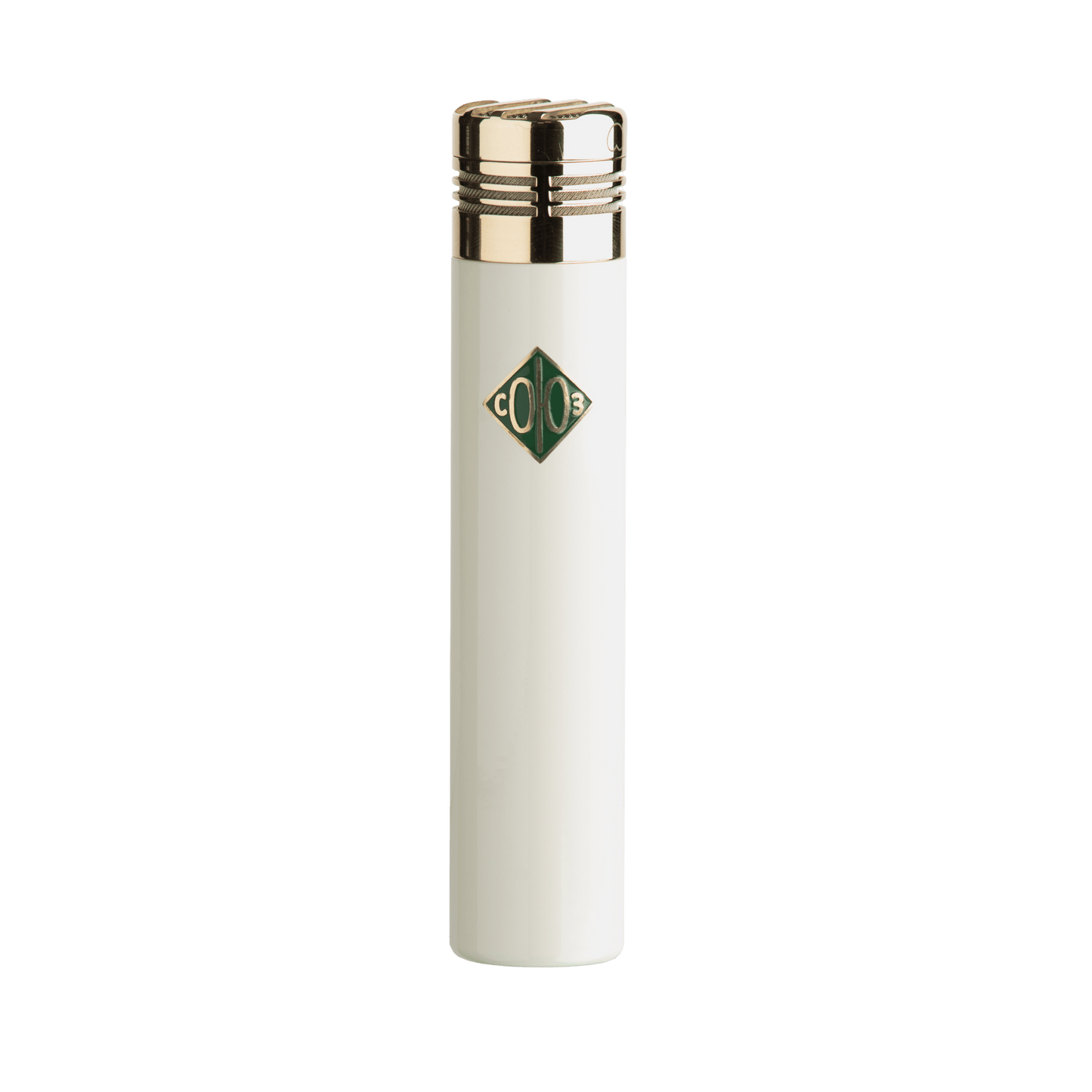

The 013 FET-M from Soyuz is a small diaphragm condenser microphone capable of detail and musicality.

When precision meets warmth

The 013 series takes inspiration from the designs of the best vintage small capsule microphones, while making modifications to give them a sonic signature all their own. Available in tube and FET versions, the 013 captures sound with precision, while giving a nice, warm sound coloring. The 013's detailed midrange and smooth highs capture complex, transient-rich sounds without adding too much harshness or weakening dynamics.

Tube or FET

The 013 series is available in either FET or tube versions; both models have identical capsules and shapes. They share similar, natural sound profiles, with some subtle differences. The 013 FET's transistor circuit captures transients with a slightly faster response; The 013 TUBE has a smoother treble, making it ideal for situations where a touch of coloration is desirable.

Features

• 100% handmade FET condenser microphone in Russia

• Toroidal transformer designed and manufactured by Soyuz

• Capsule with gold-sputtered 25mm diaphragm - designed and manufactured by Soyuz

• Optional additional capsules: omni, hypercardioid;
• -10 dB attenuator included;

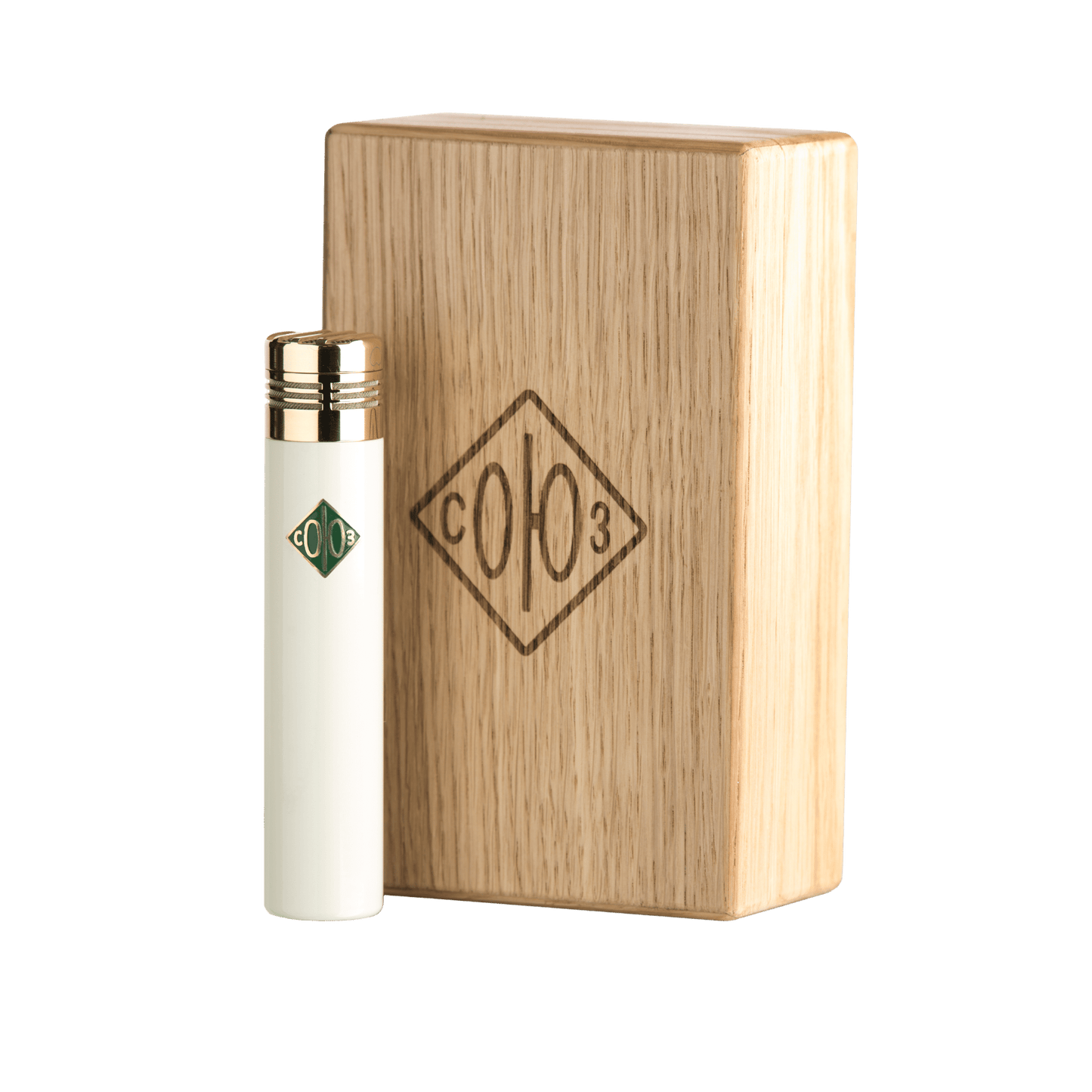

• Handmade solid wood box in Russia
• Frequency response: 20Hz to 20kHz
• Sensitivity: 20 mV/Pa

• Impedance: 150 Ohms

• Sound pressure level: 143 dB

• Equivalent noise: 16 dB (Decibel A; A-Weighted)

• Power supply: Phantom 48V

• Dimensions: 122 mm in length x 25 mm in diameter (24 mm in diameter for the capsule head)

• Weight: 200g (microphone only)

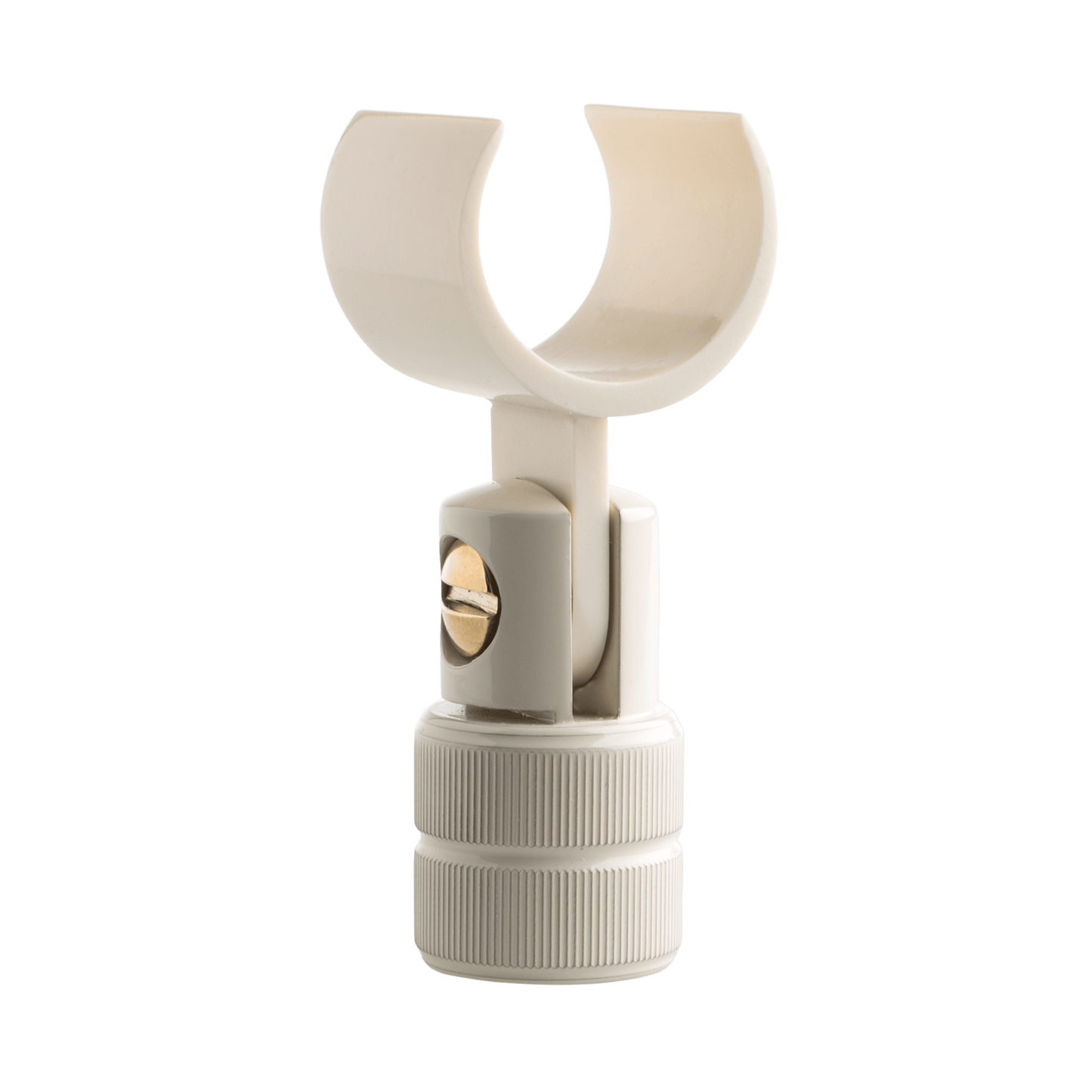

• Included: box, attenuator and clamp
