The Myth of Balanced Headphone Amplifiers

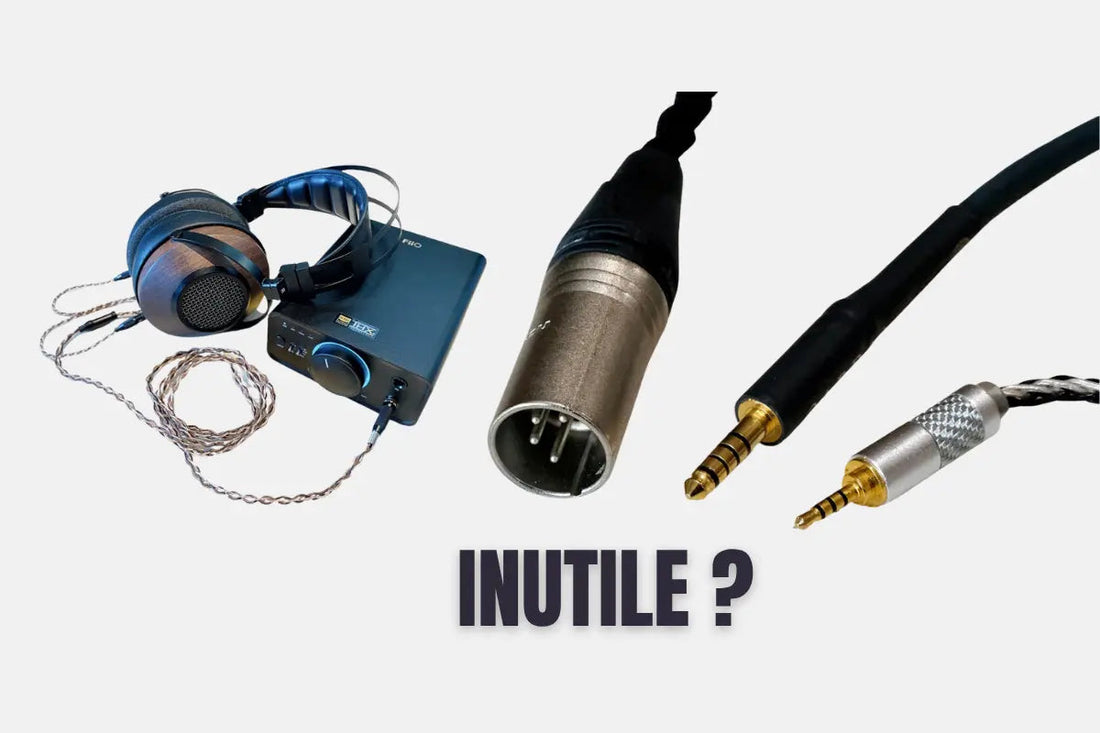

In the world of headphones, the term "balanced" has become ubiquitous. Many high-end devices now highlight their "fully balanced" architecture, their 4-pin XLR outputs, or their 4.4 mm Pentaconn connectors as arguments for sound quality.

For many enthusiasts, balanced has become synonymous with better sound, better channel separation, more detail, or a more "audiophile" rendition.

However, when it comes to headphone amplification specifically, the technical reality is much more nuanced.

First, two very different things must be distinguished: balanced modulation links between audio devices, and balanced headphone amplification itself. Classic balanced connections, like the XLR used in studios, have a real technical advantage. They reduce interference and noise problems over long distances. This is an essential standard in professional audio.

But headphones are not a modulation link.

As Benchmark Media explains in a seminal article on the subject, the main advantages of balanced connections do not really apply to headphones. Headphones do not carry a weak analog signal vulnerable to noise like an inter-device link. The classic benefits of balanced — particularly common-mode rejection — are therefore not relevant here.

In most cases, a "balanced" headphone amp simply operates in bridge mode, also known as BTL (Bridge Tied Load). Each side of the headphone is then driven by two amplifiers instead of just one. This primarily increases the available voltage and thus the power.

This is, in fact, the main real advantage of balanced architectures for headphones: more power.

And this also explains why many balanced amps give the impression of being better. Very often, they are simply more powerful than their single-ended output.

This increase in power can obviously be useful with certain particularly demanding headphones. But it does not automatically mean better sound quality.

Benchmark even goes further by explaining that a differential architecture generally adds more electronic stages, more components, and more complexity than an excellent single-ended architecture.

The brand states in particular:

“A conventional single-ended headphone drive is technically superior.”

In other words, according to Benchmark, an excellent single-ended headphone output is technically preferable to a more complex balanced architecture.

This is a fairly radical position in an industry where "fully balanced" has become an almost systematic marketing argument.

Another often-cited argument concerns channel separation. Some balanced architectures do indeed use separate returns or independent grounds. But in practice, properly designed modern single-ended amplifiers already achieve extremely low crosstalk levels, far beyond what is audible in most cases.

Balanced has thus gradually become a "premium" marker. Many users instinctively associate 4-pin XLR, Pentaconn connectors, or dual mono architectures with higher-end products. However, the actual implementation remains far more important than the type of connector used.

What really matters in a headphone amp ultimately remains quite simple: power adapted to the headphones used, low noise floor, low distortion, low output impedance, good volume control, and serious design.

An excellent single-ended amplifier can be completely transparent and perfectly sufficient for the vast majority of headphones on the market.

This does not mean that balanced amplification is systematically bad or useless. But the idea that a headphone amplifier automatically becomes better because it is "fully balanced" is not really based on solid technical foundations.

As often in audio, implementation matters far more than marketing arguments or the type of connector displayed on the front.

, implementation matters far more than the terms used on the technical sheet.

Reference source:
Benchmark Media — Audio Myth: Balanced Headphone Outputs are Better
