Surround speakers for immersive systems

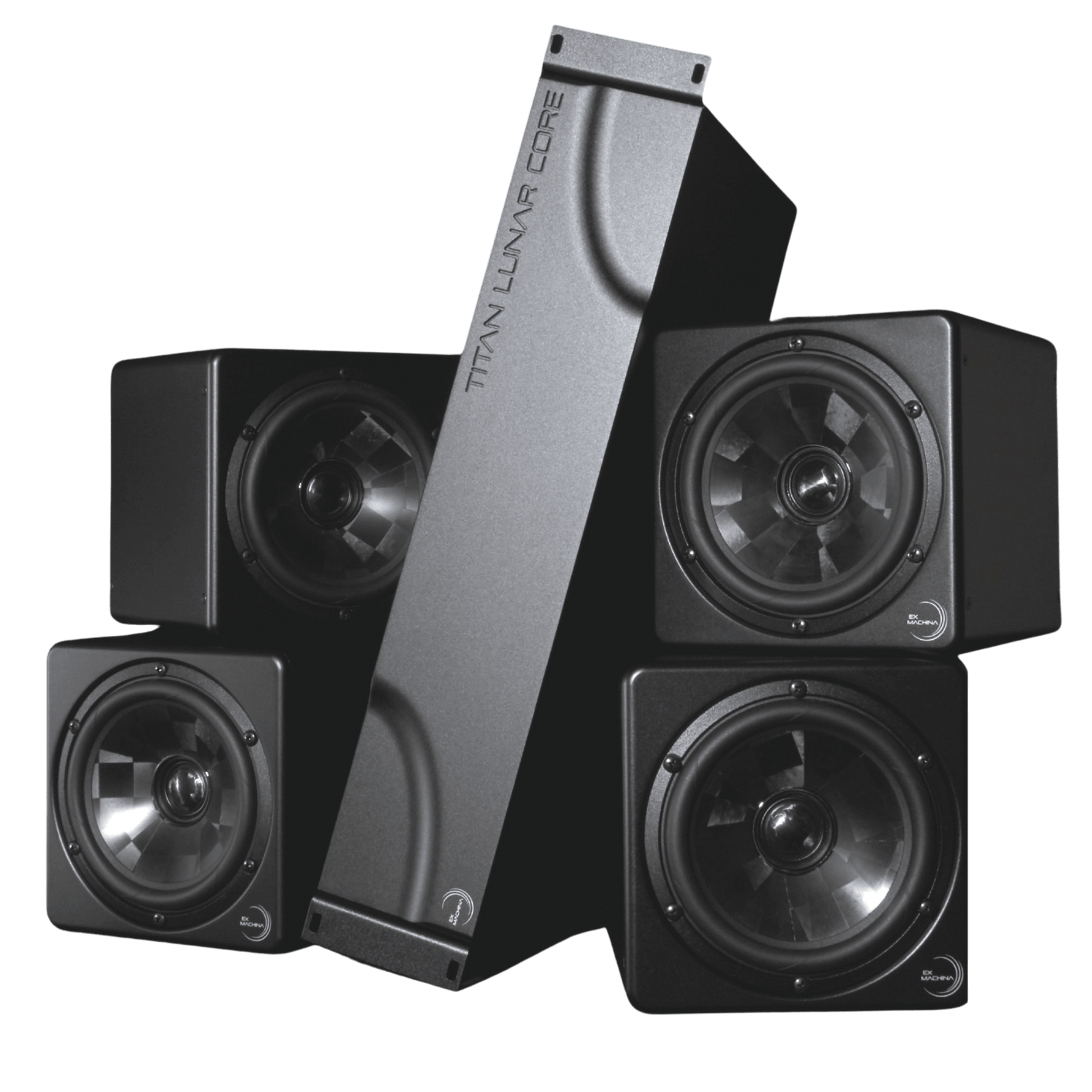

The Titan is a solution specifically designed for surround sound and object-based audio. Rather than repurposing a nearfield speaker, the Titan was conceived from the ground up to meet the demands of modern multichannel formats like Dolby Atmos. Compact and powerful, this system features true point-source 90 x 90° dispersion, ultra-rigid aluminum cuboid speakers, and Composite Sound Metamodal TX diaphragms. Available only as a package of four satellites plus a 2U “Titan Lunar Core” amplifier/DSP.

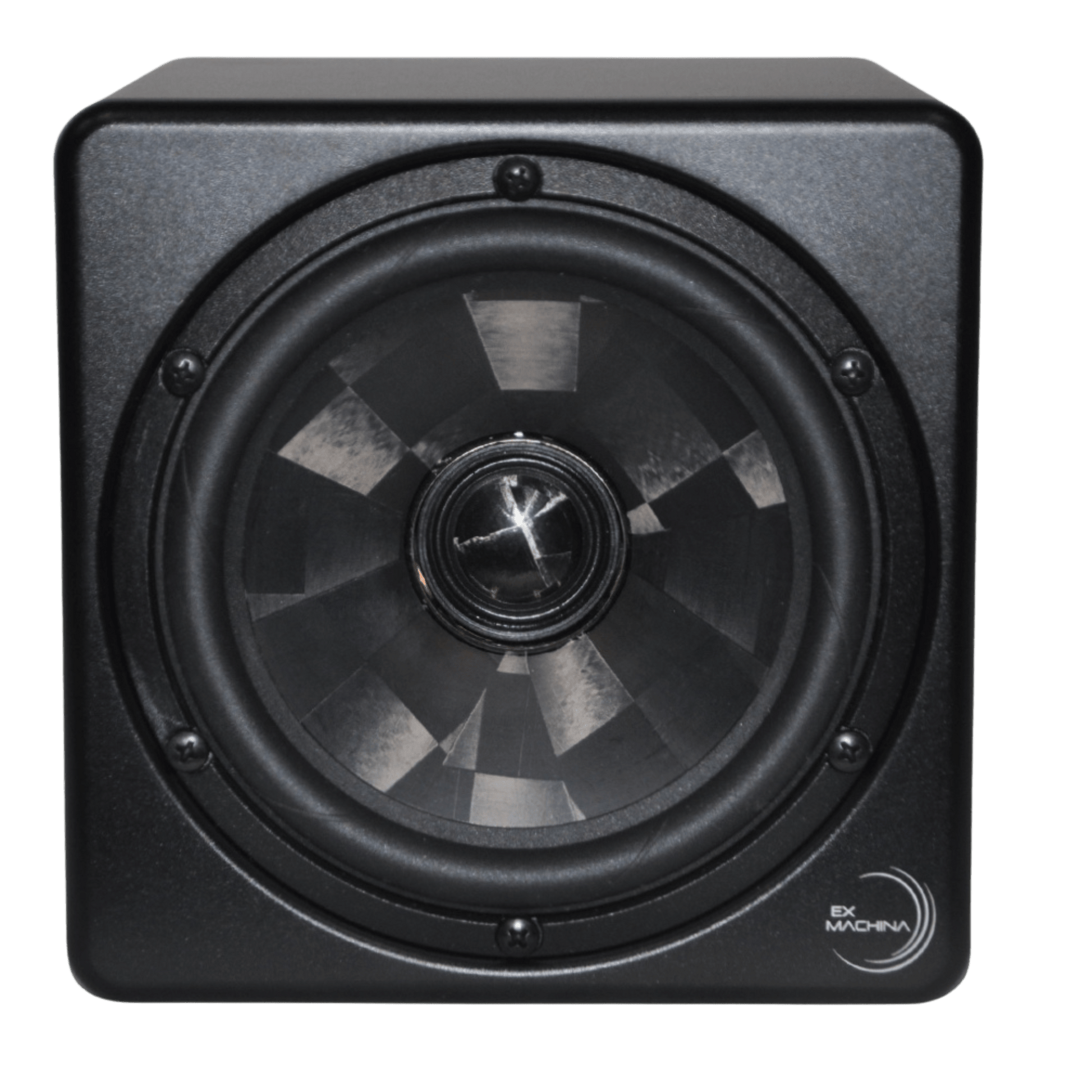

SEAS custom coaxial woofer/tweeter

The latest generation of Composite Sound Metamodal TeXtreme diaphragms utilizes ultra-lightweight and ultra-rigid carbon fibers with geometries optimized to actively control and suppress resonances. The woofer's waveguide, designed with a mathematically optimal shape, ensures true point-source behavior and a strikingly realistic soundstage. The finite-element optimized ferrite motor incorporates an advanced copper demodulation ring, guaranteeing extremely low inductance and minimal distortion.

Electronic

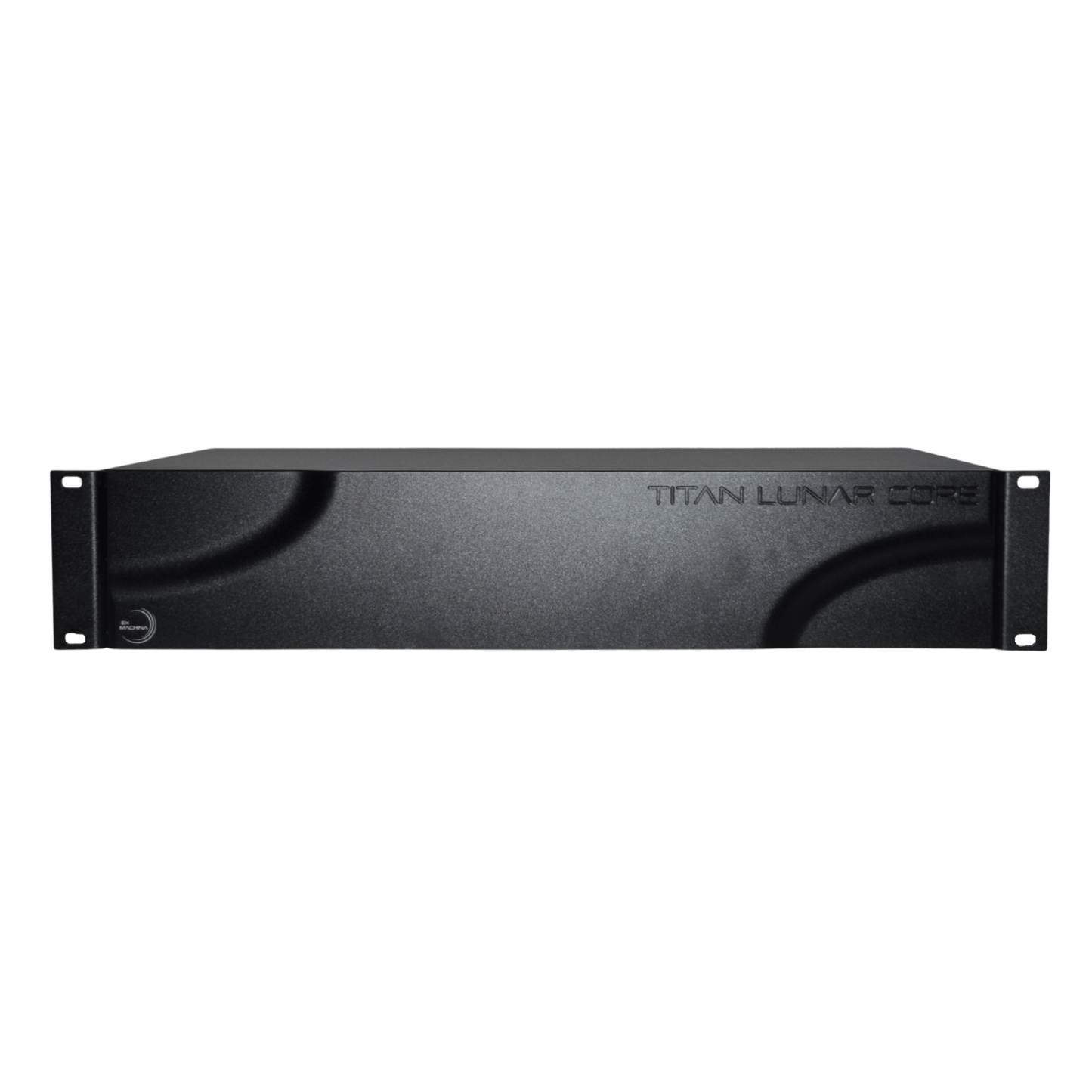

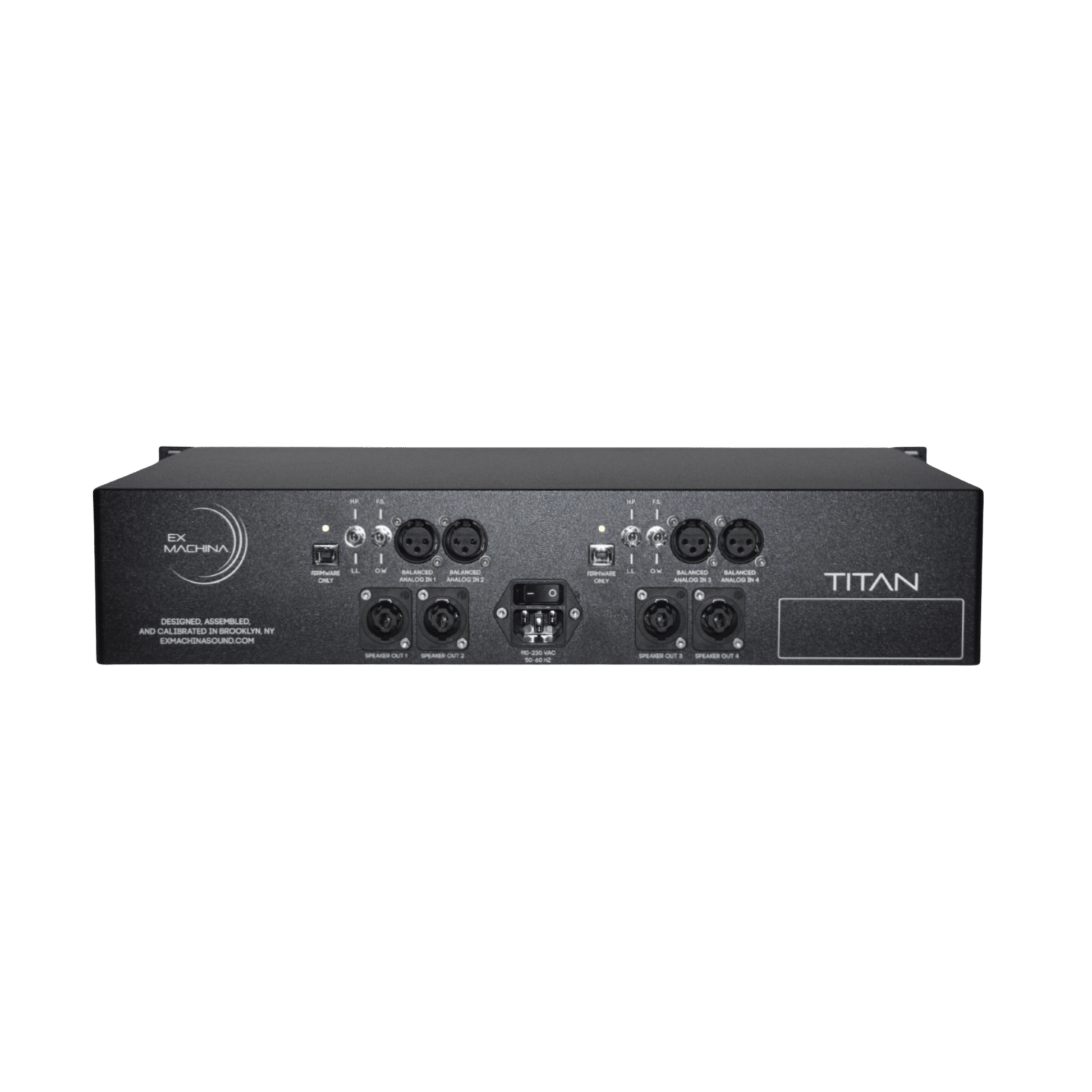

The conversion relies on high-end AKM Velvet Sound AK4493/AK5572 chips, offering complete transparency without any coloration. Hypex Ncore amplifiers deliver ample, perfectly clean, and efficient power. The 5th generation SHARC+ DSP ensures extremely fast and precise digital processing, capable of handling complex calculations in real time. The 4-channel remote amplifier/DSP package is included in a compact 2U chassis.

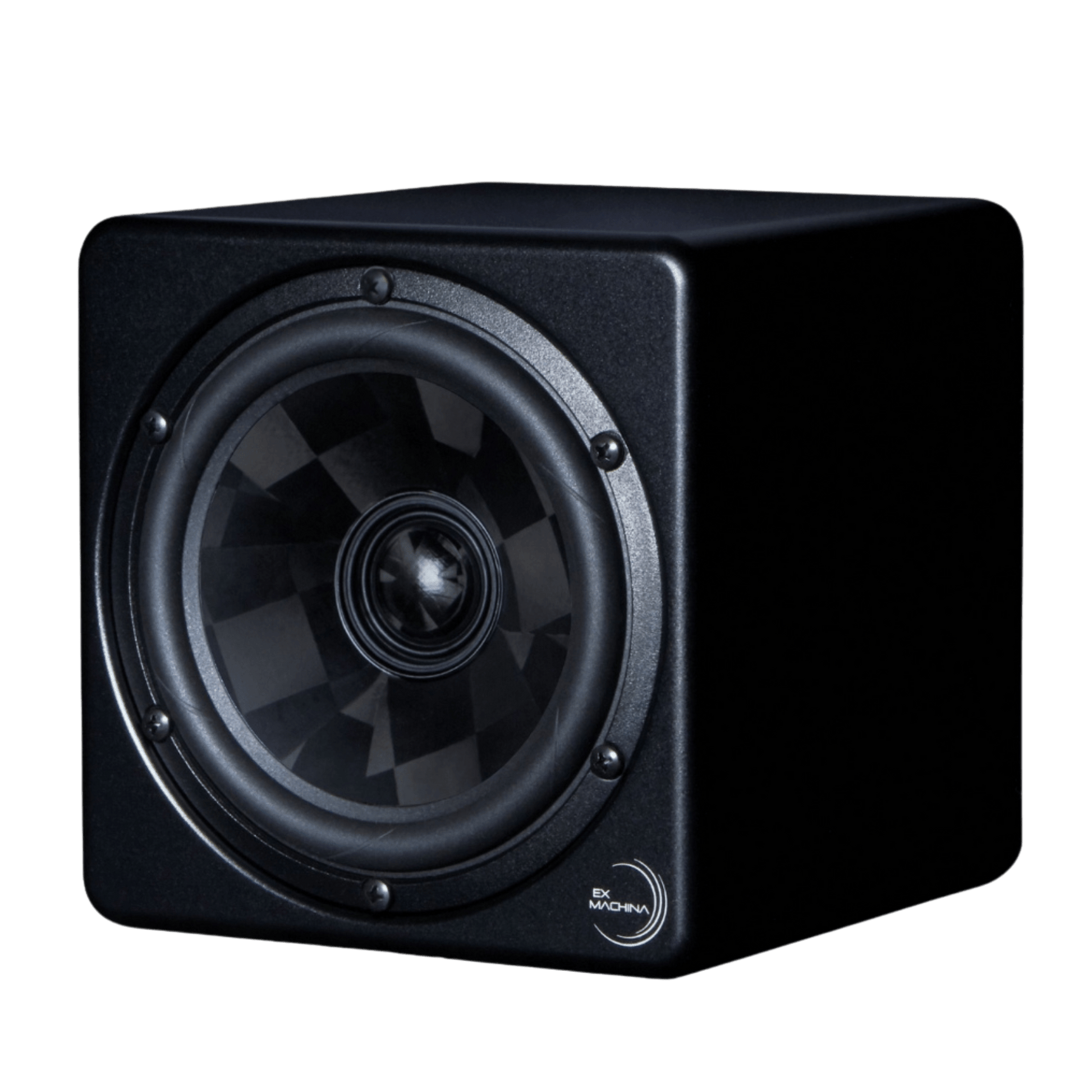

Sealed extruded aluminum cases

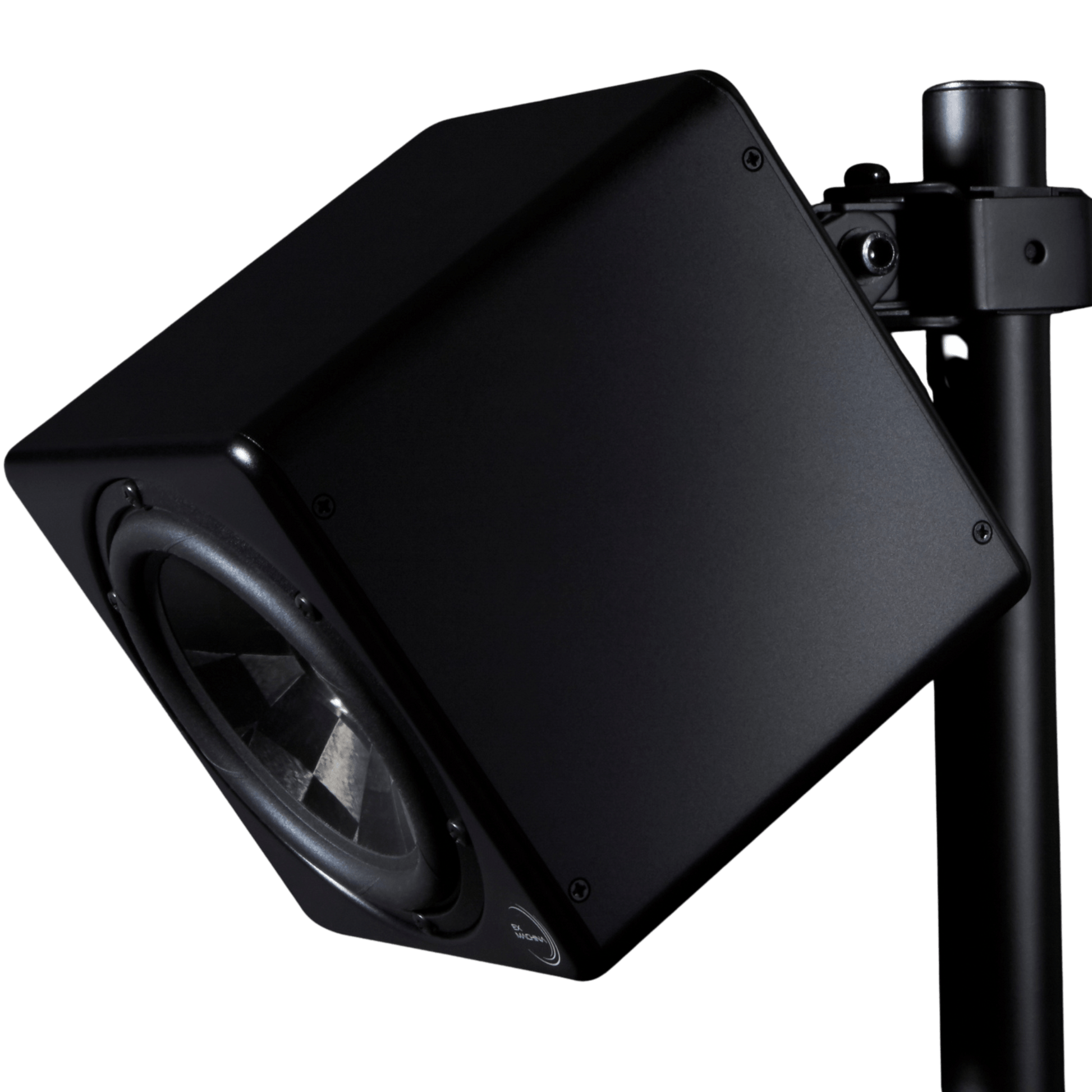

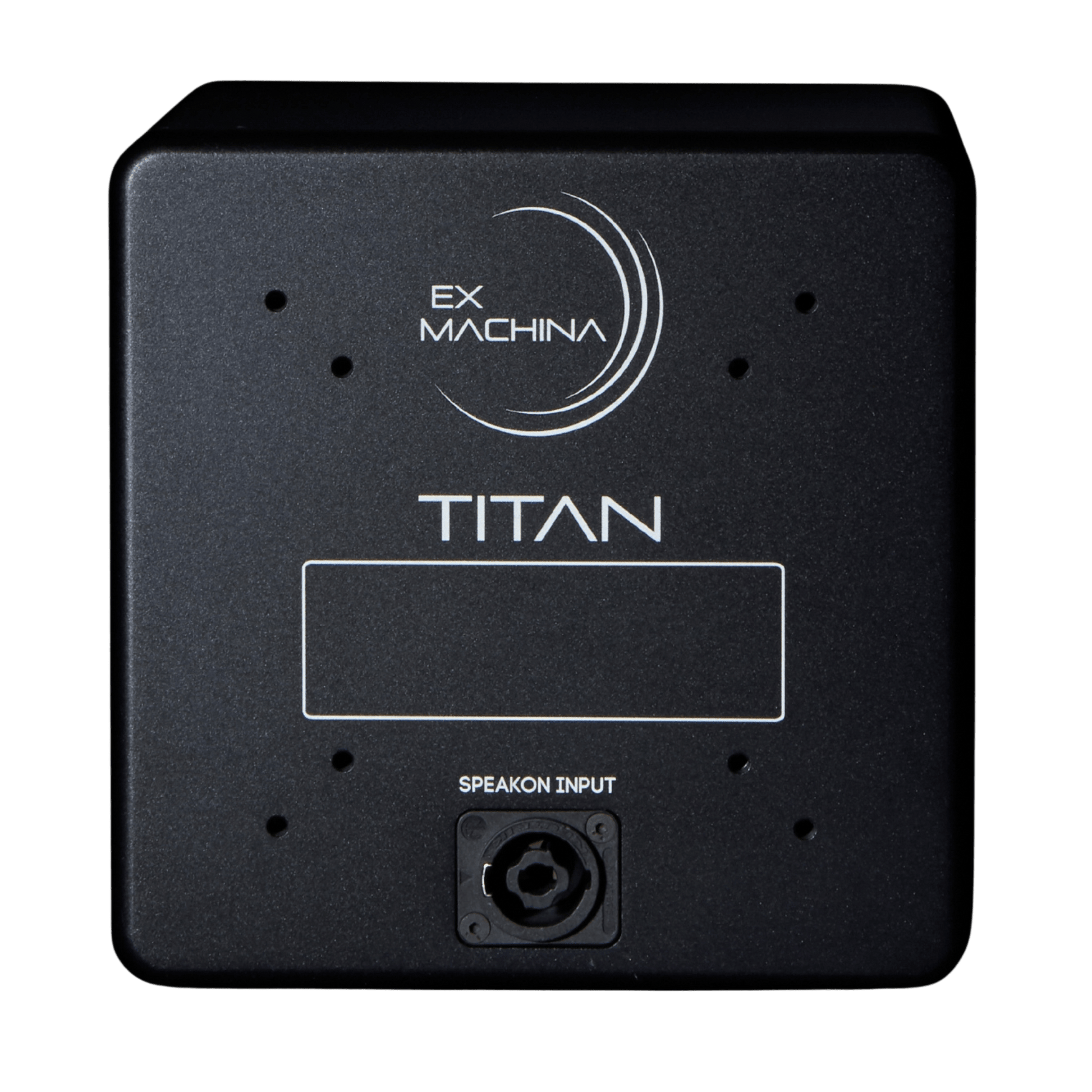

The ultra-rigid aluminum extrusion gives the enclosures exceptional mechanical inertia, likely the most inert ever offered by the brand. Integrated VESA MIS-D mounting points (75×75 mm and 100×100 mm) allow for a wide variety of simple and affordable mounting options. The 4-pole SpeakON input enables remote bi-amplification via a single cable, simplifying installation.

DSP

The proprietary calibration program, developed in-house, fully corrects the frequency, phase and impulse response for a perfectly neutral and coherent reproduction.

Technical specifications

Audio performance

• Linear frequency response: ±1 dB from 80 Hz to 30 kHz (measured at 30 cm)
• Low-frequency cutoff: -6 dB at 58 Hz
• Phase response: ±15° from 50 Hz to 30 kHz
• Maximum SPL at 1 m: 106 dB
• THD+N (94 dB in calibration position): < 0.5% (100 Hz – 30 kHz average power)
• Coverage angle: 90° conical

Speakers

• 146 mm (5.5") woofer + 25 mm (1") coaxial tweeter SEAS/Ex Machina/Composite Sound Metamodal TX™

Crossover

• 2 kHz, 8th order digital filtering, phase corrected

Amplification

• Woofer: Hypex NC122MP – 100 W
• Tweeter: Hypex NC122MP – 50 W (voltage limited)
• Ventilation: allow 1 free unit above and below the amplifier

DSP & Conversion

• A/N: AKM 5572EN
• N/A: AKM AK4493EQ
• DSP: SHARC+ 5th generation (AD21565)

Input sensitivity

• 8 Vrms (default configuration)
• 2 Vrms (high gain option)

Dimensions & weight

• Satellites: 165 × 165 × 165 mm – 5.5 kg
• Amplifier/DSP 2RU: 6 kg
