Stereo VU meters

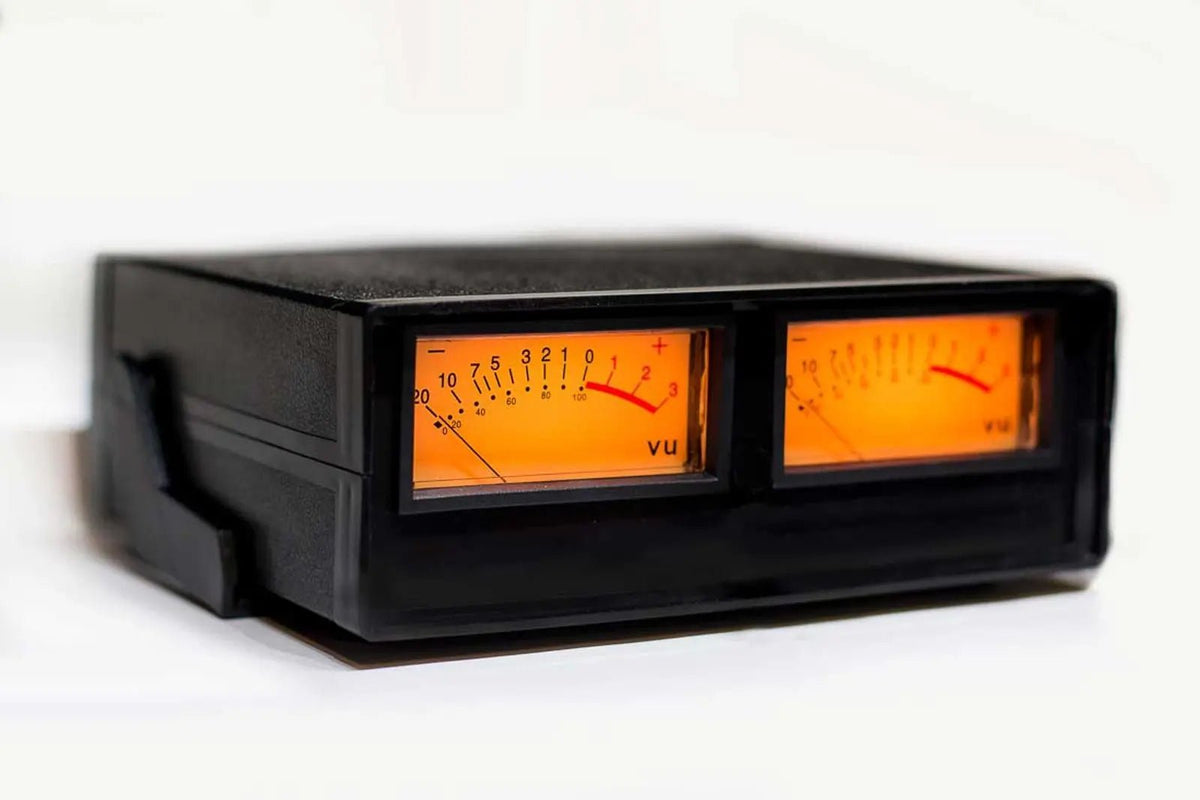

These VU meters are handmade in the UK and take on the classic look of hi-fi and studio VU meters.

This product comes in 3 versions:

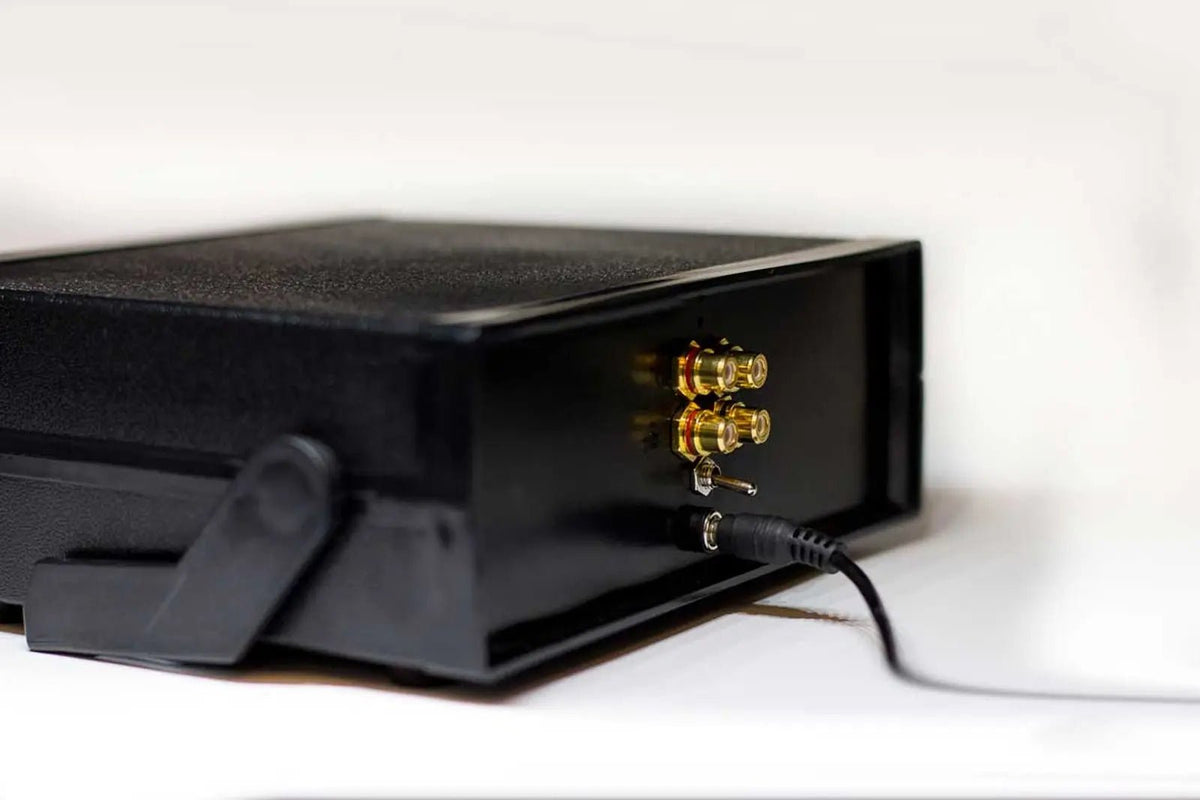

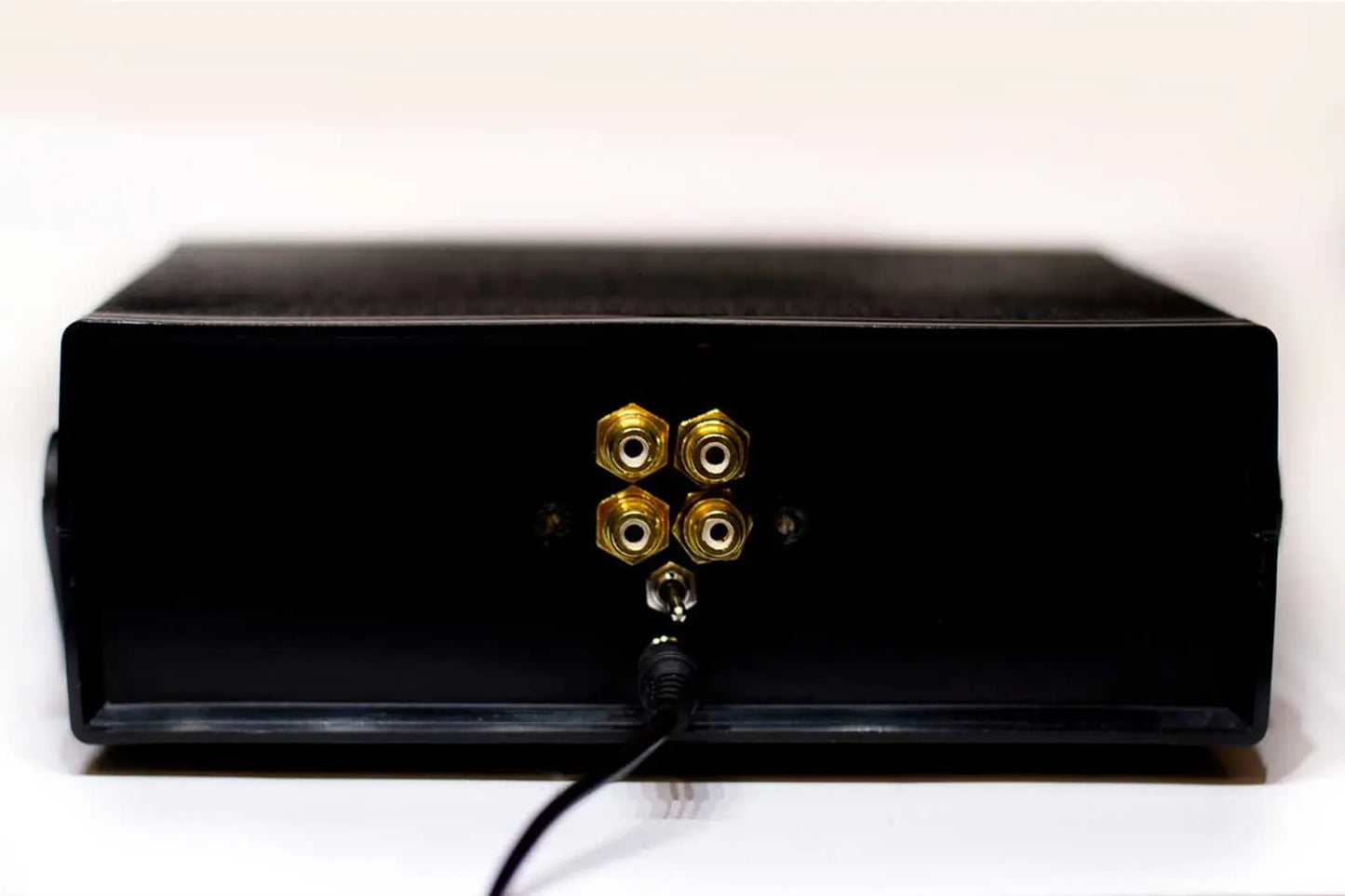

• a version with 2 RCA inputs and 2 RCA outputs

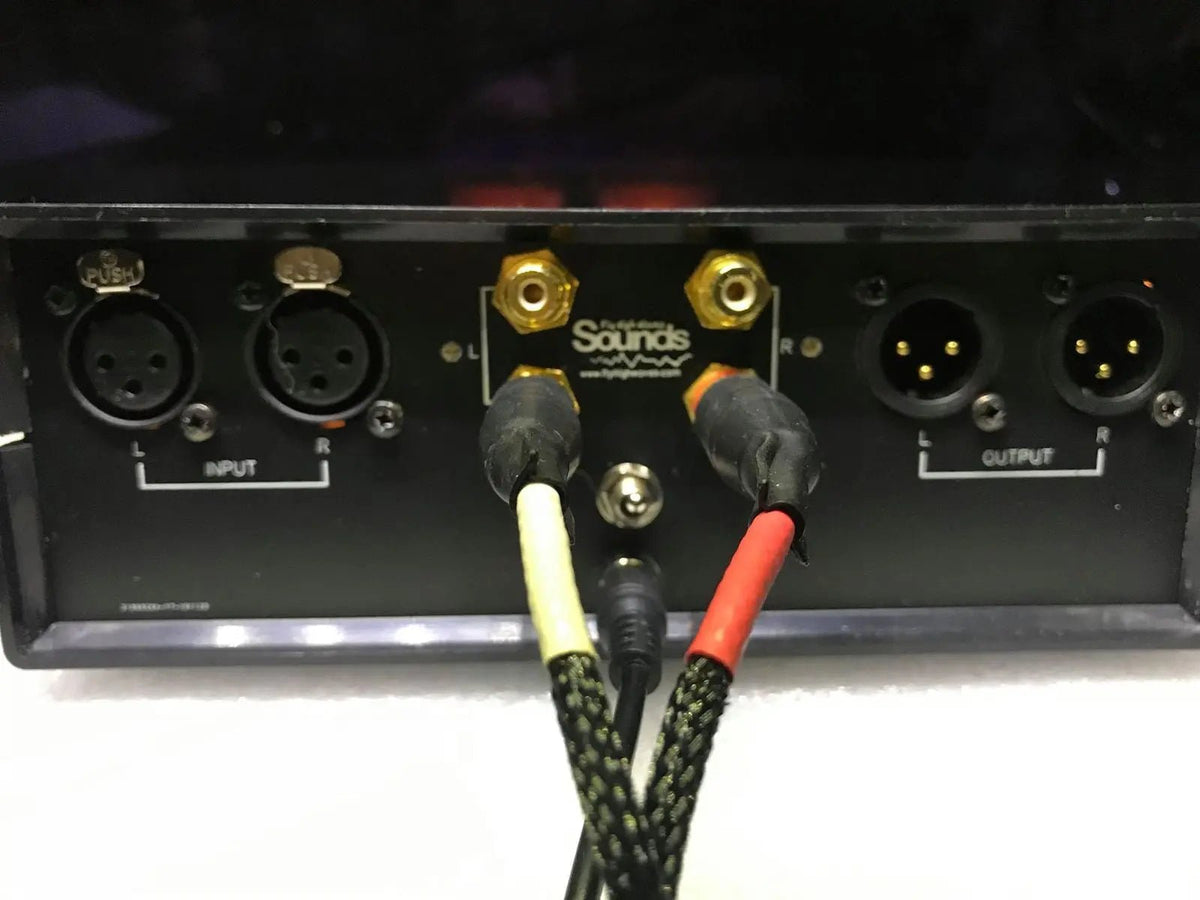

• a version with 2 RCA inputs and 2 RCA outputs, plus 2 XLR inputs and 2 XLR outputs
• a version with 2 RCA inputs and 2 RCA outputs, plus 2 6.3 mm TRS jack inputs and 2 6.3 mm TRS jack outputs

Specifications

• Dimensions: W 20 cm × D 17.8 cm × H 7.2 cm (7.8" × 7" × 2.8")
• Large format: one of the largest analogue VU meter displays available
• Connectivity: RCA, XLR or TRS
• Metering: RMS level true to the behaviour of analogue VU meters
• Recommended power: 9–16 V DC, 500 mA to 1 A recommended
• Lighting: filament bulb
• Accessible calibration: external access to adjustments without disassembly
• Precision: multi-turn (10-turn) trimmers for fine, stable calibration
• Handcrafted: hand-assembled, boutique-style finish
• 100% pass-through: the signal passes through the unit even when switched off (no signal interruption)
• Power supply included
