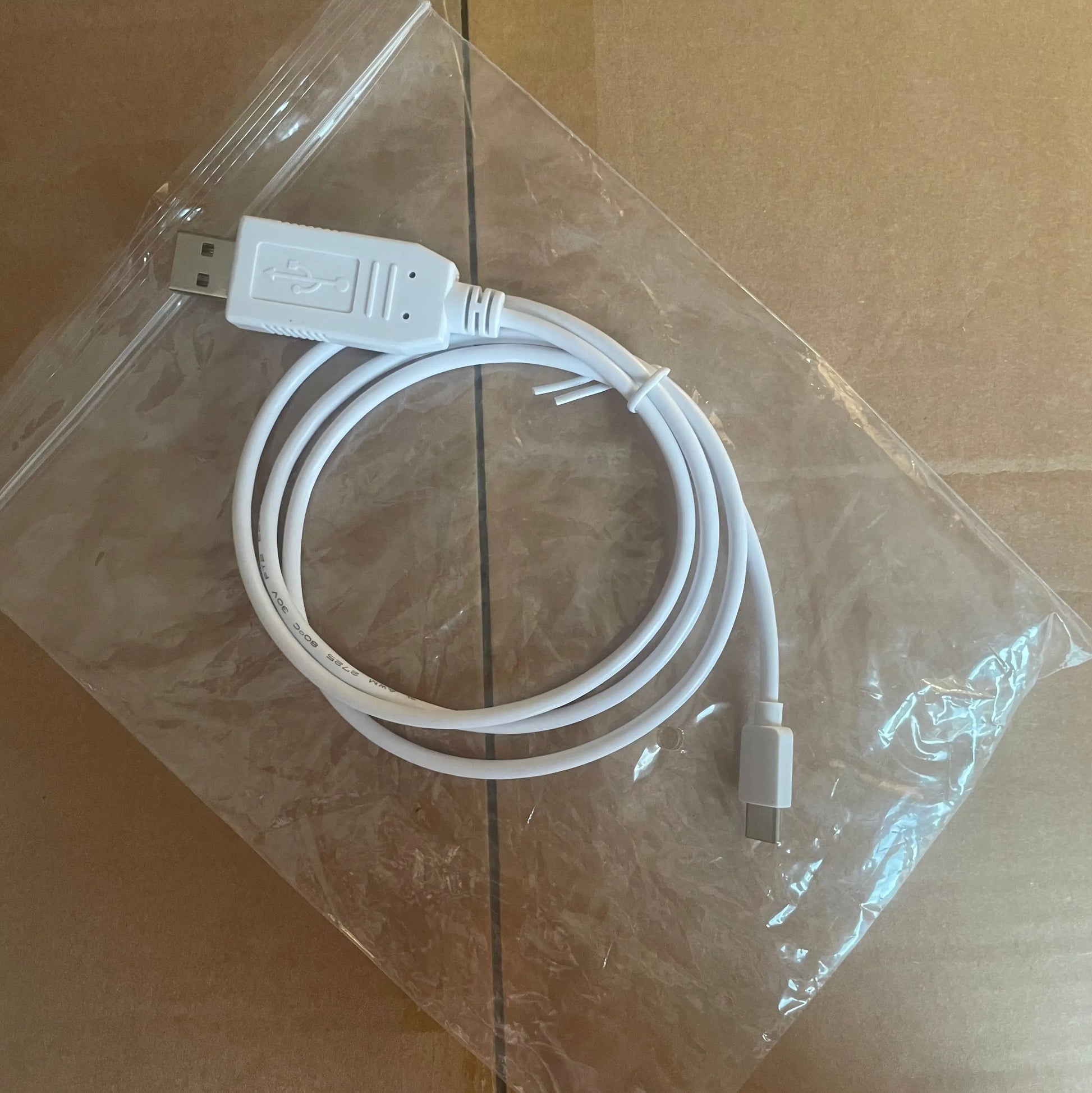

USB Audio Class 1 UAC1 Fallback Cable

This custom USB cable forces UAC1 mode on all current JDS Labs DACs for connection to PS4/PS5 or Nintendo Switch. Use your DAC's original black USB cable to take full advantage of UAC2 features.

For more information, please refer to the custom firmwares on the brand's website.

Direct connections are preferred. If you need to connect your DAC at a distance of more than 1 meter, you can use a USB hub as an extension.

Connecting to PS4/PS5

PS5 users: Connect your DAC to one of the USB ports on the back of your PS5. The USB ports on the front may introduce interference.

Important note: PS4 and PS5 are known to limit audio output volume on USB outputs. Make sure to install a tested PS4/PS5 firmware to force correct volume levels. All recent DACs are shipped with the appropriate firmware. For older DACs, an update may be necessary: visit the brand's website for more information.

Connecting to a Nintendo Switch

To connect a DAC to the Nintendo Switch, you need to install a specific compatible firmware. Please mention your particular request when contacting us.

Configuration

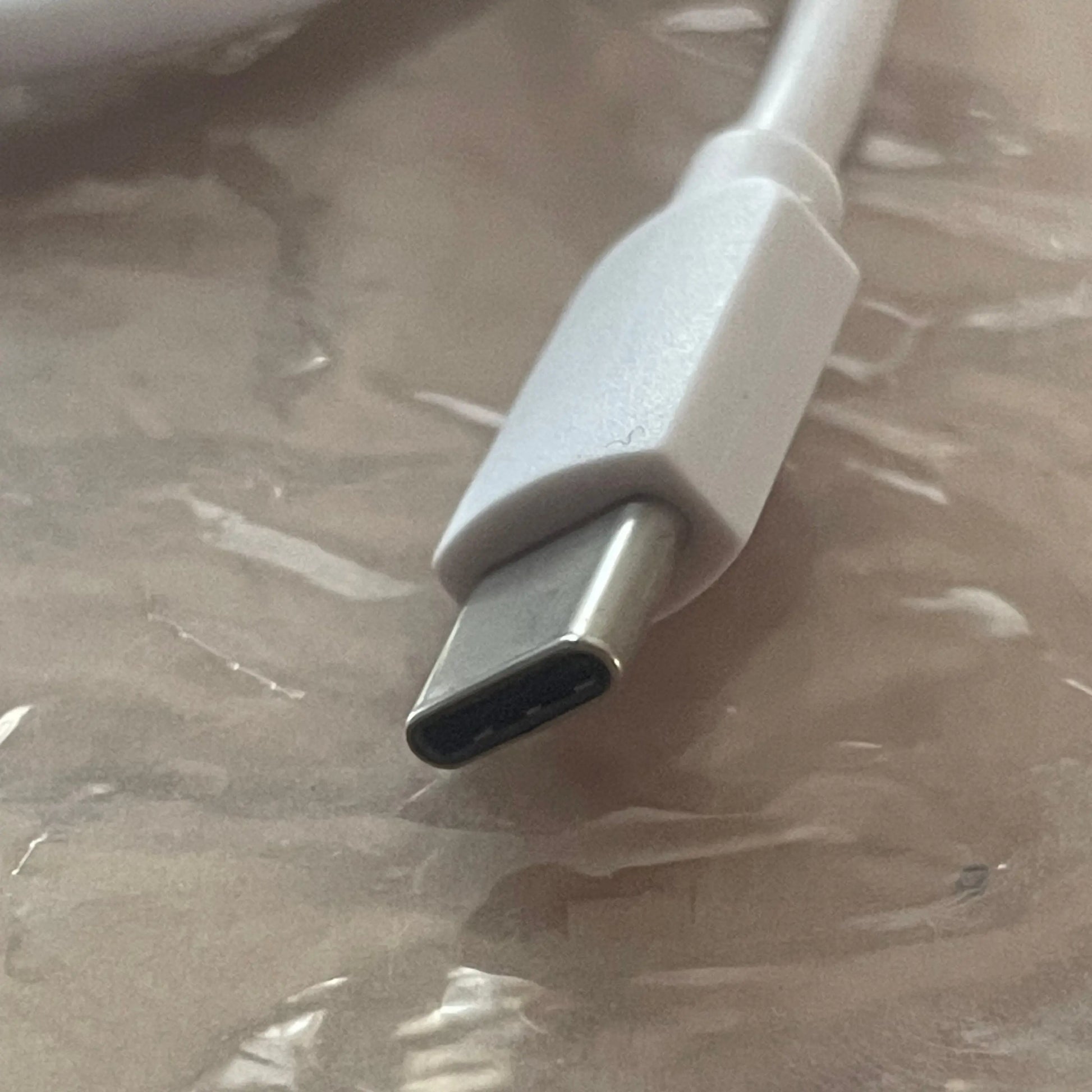

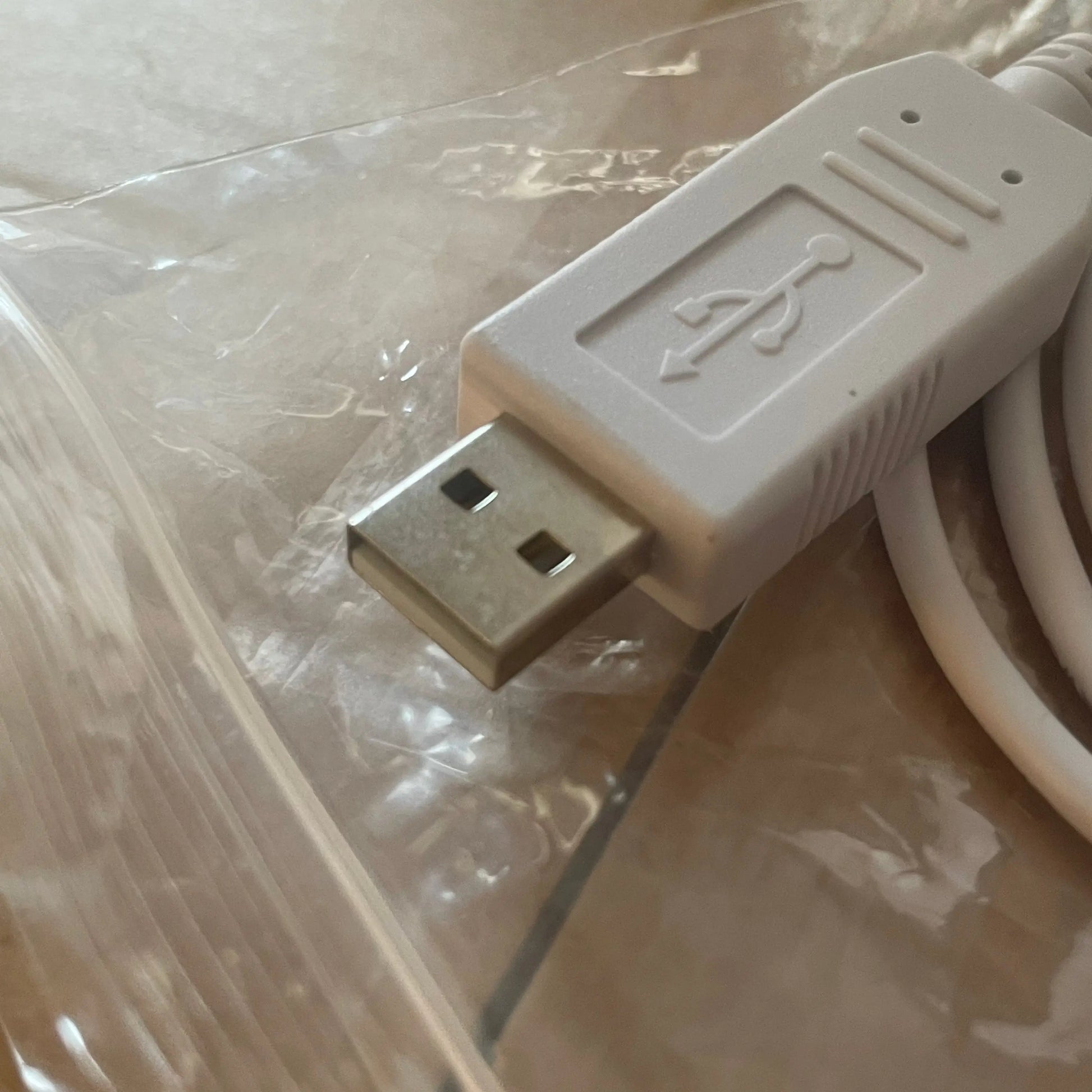

• Connectors: USB Type A to Type C
• Length: 1 meter
• USB Specification: Full Speed, 12 Mbps
• Cable Type: Active USB repeater

Note: This cable is designed for UAC1 audio streaming at 24-bit/48 kHz, typical of game consoles, and supports up to 24-bit/96 kHz via a direct connection to a PC.
