Column speakers

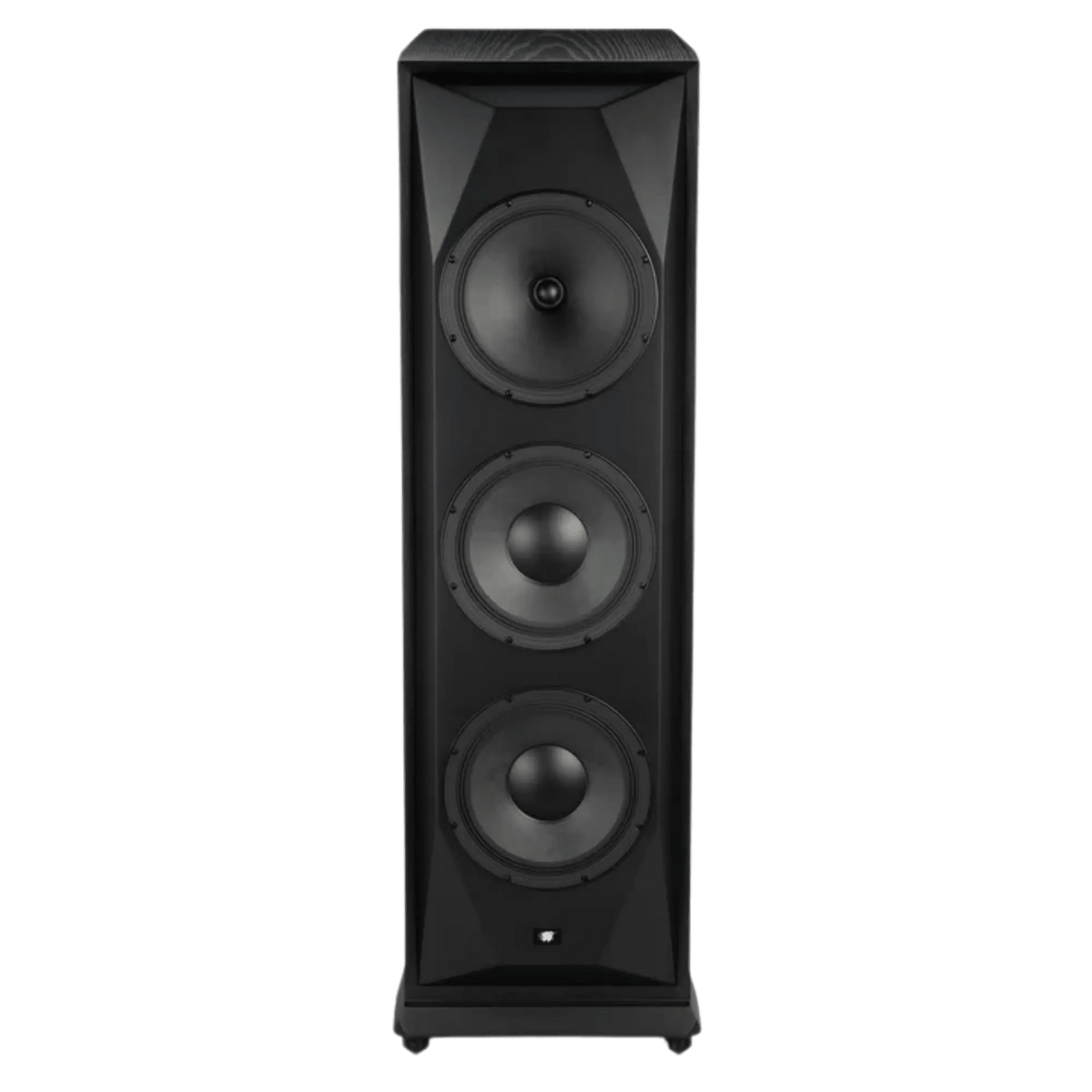

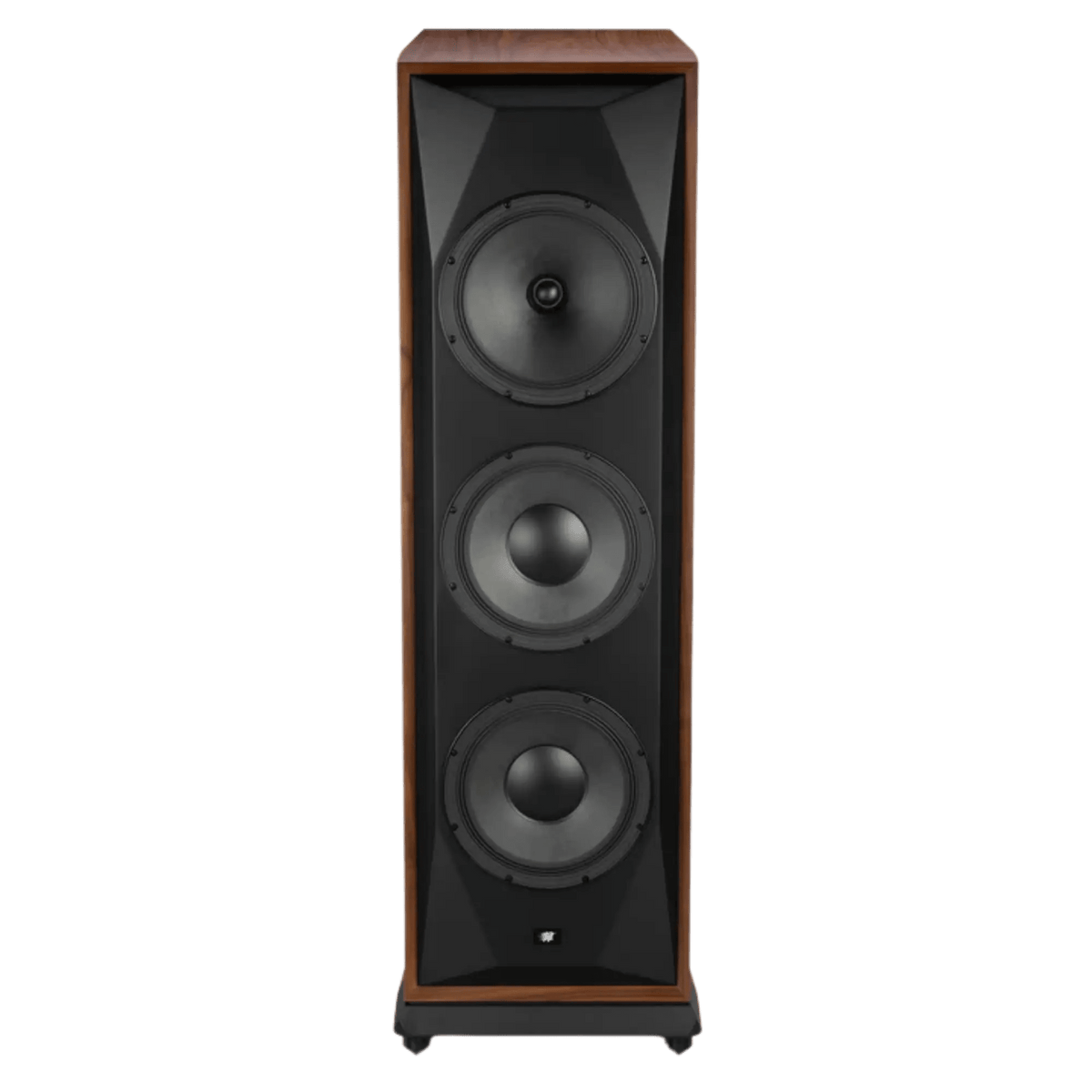

The SourcePoint V10 Master Edition is a completely redesigned evolution of the SourcePoint 10 platform: designed by Andrew Jones, it incorporates two 10-inch woofers and two passive radiators on the rear, freeing up the coaxial driver for optimal midrange and treble reproduction. The result is remarkable bass extension, highly realistic vocal presence, and exceptionally clear treble, all housed in a rigid, optimized multi-chamber cabinet designed to eliminate unwanted resonance.

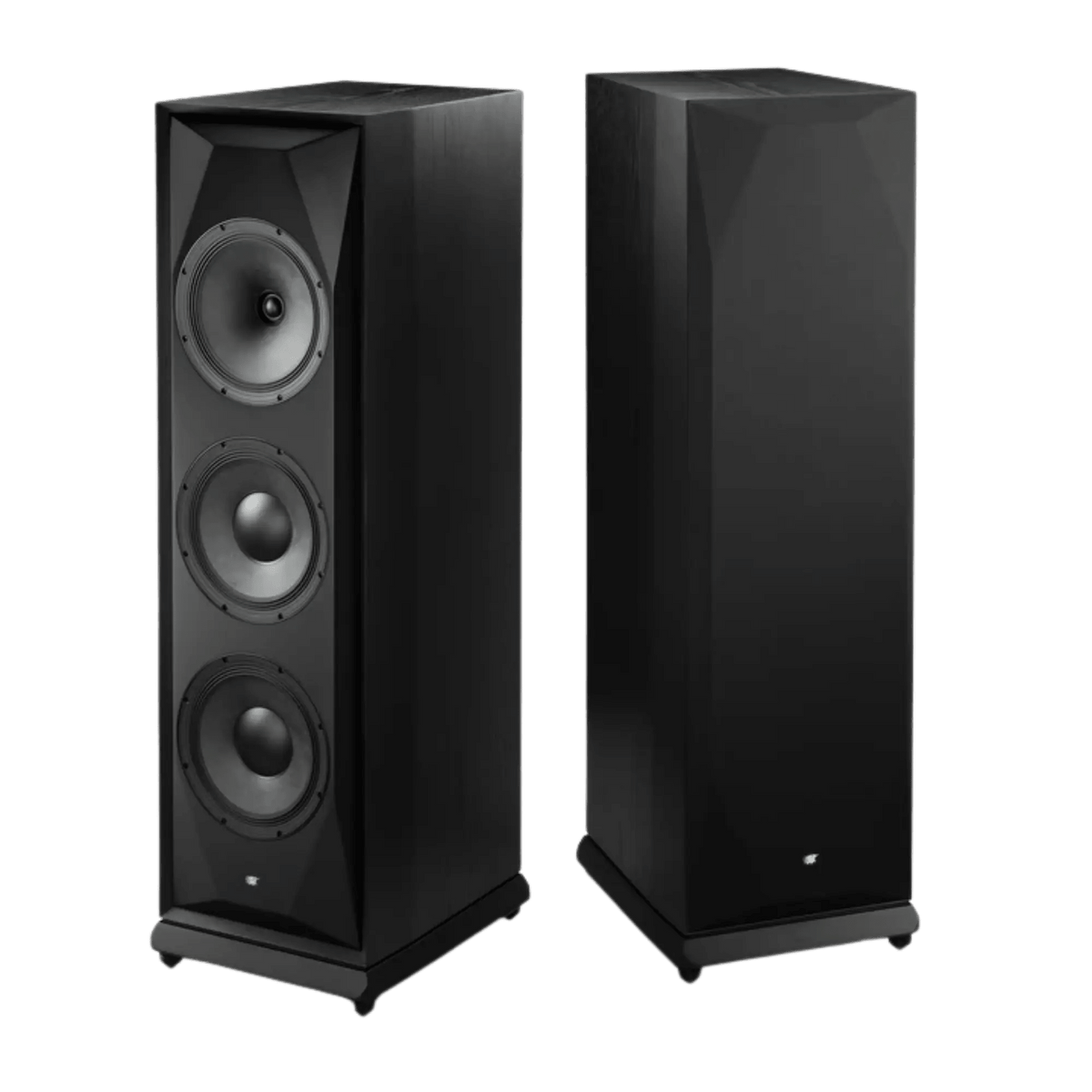

10 speakers. 2 speakers. The power of the V10.

Ten meticulously designed 10" drivers, five per speaker, work in perfect synergy to deliver the V10's signature sound, combining spaciousness, speed, and precision. Each speaker incorporates a coaxial mid/tweeter, two woofers, and two rear passive radiators, ensuring that every frequency range is handled by a dedicated element. This results in a wide and immersive soundstage, deep and impactful bass, strikingly realistic midrange, and bright highs, all with remarkable coherence and authority.

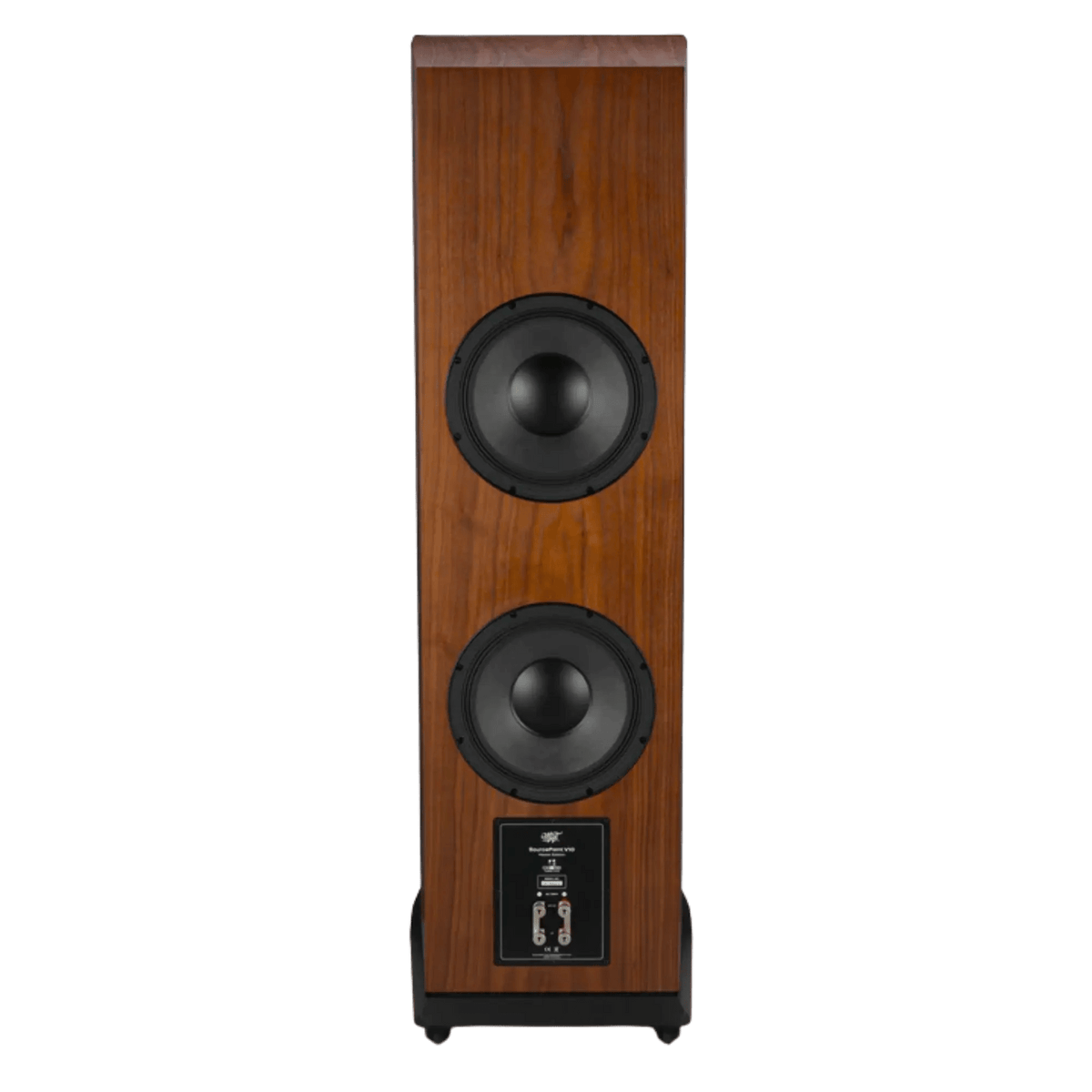

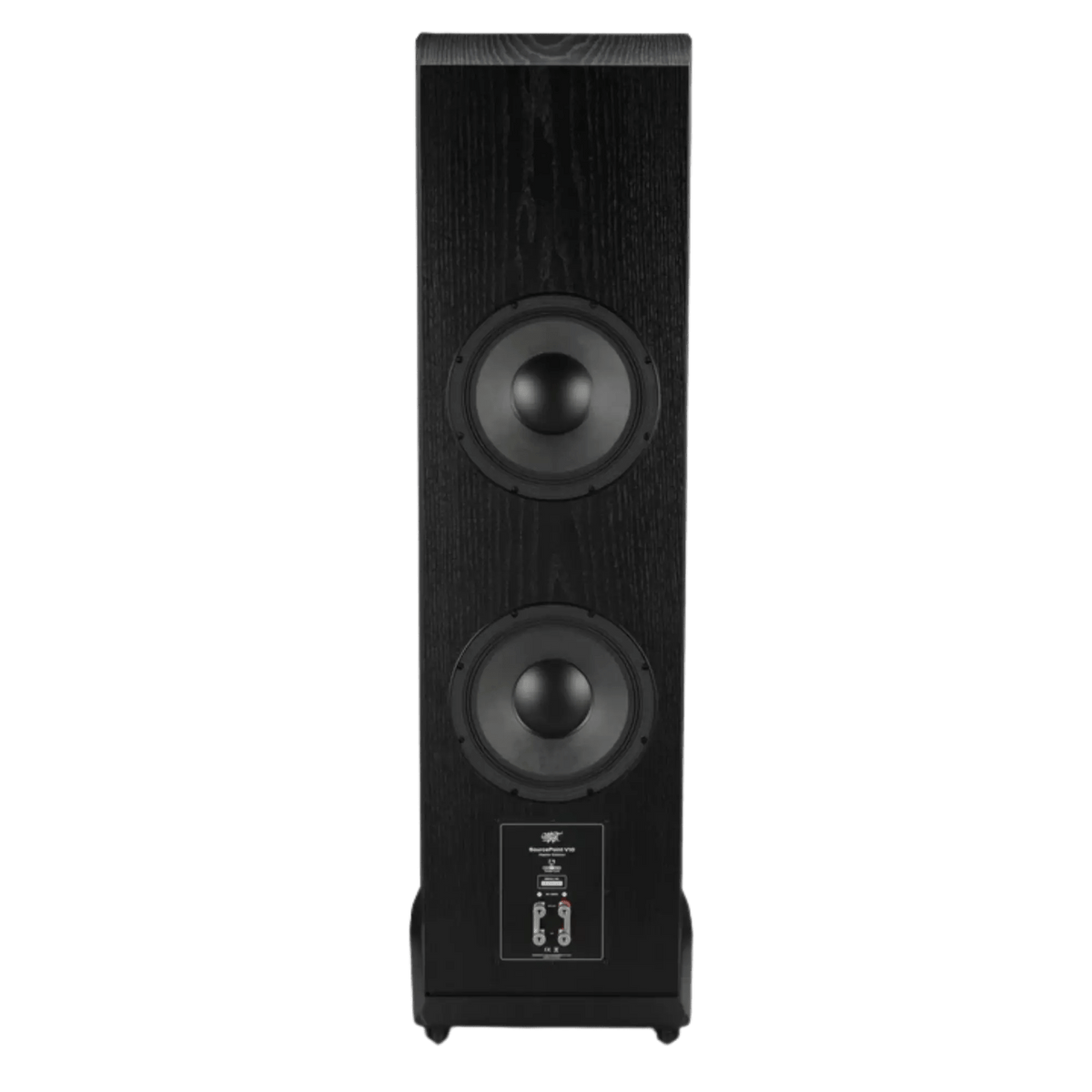

Radiant resonance: dual 10-inch passive radiators

Offering comparable displacement to a large bass port, but with significantly greater control, the two 10-inch passive radiators boost low frequencies down to 27 Hz without generating distortion or turbulence. By handling the most demanding bass requirements, they allow the woofers to operate within their optimal range, greatly reducing mechanical stress and preserving clarity. Mounted in isolated chambers, these radiators integrate seamlessly with the midrange to deliver powerful, articulate, and natural bass, even at high volume levels.

Adjustable Filter Master Edition

At the heart of the V10 Master Edition lies a user-adjustable crossover, built around high-end components—polypropylene film capacitors, metallized film resistors, and air-core inductors—ensuring extremely low distortion. Integrated selectors allow you to adjust the treble level to suit room acoustics and listening preferences, while precise phase alignment ensures a perfectly coherent transition between the woofers, midrange, and tweeter. The result is a customizable sonic signature that combines power and finesse, offering complete control over the V10 Master Edition's musical reproduction.

Key points

• 3-way design with coaxial speaker for exceptional coherence and dispersion.
• Deep and controlled bass down to 27 Hz thanks to the rear passive radiators, without distortion or flow noise.
• Adjustable Master Edition filter, using audiophile components with very low distortion.
• Reinforced multi-chamber cabinet and sculpted front panel for precise image and high dynamic range.
• High-end finishes in real wood, selected and matched.

Features

• Frequency response: 27 Hz – 30 kHz
• Sensitivity: 91 dB (2.83 V / 1 m)
• Nominal impedance: 6 ohms (4.5 ohms min.)
• Maximum power: up to 200 W
• Cutoff frequencies: 130 Hz / 1.4 kHz
• Architecture: 3-way speaker with passive radiators and coaxial driver
• Transducers: 10″ coaxial midrange + 1.25″ adjustable soft dome tweeter, 2 × 10″ woofers, 2 × 10″ passive radiators
• Finishes: Real wood veneer in walnut or black ash
• Dimensions (H × W × D): 124 × 39.4 × 50.5 cm
• Weight: 72.5 kg per speaker
