Passive mastering EQ: why the best circuit is the one that loses signal

Mastering isn't about fixing things. It's about tilting them. Half a decibel at 8 kHz, another one below 100 Hz, and the track takes on a different character without you being able to point at what moved. That kind of gesture is exactly what passive tube equalisers were built for seventy years ago — and the reason nothing has replaced them since. Here's how they actually work, what they do well, what they can't do at all, and which machines get closest to that sound in our racks.

A circuit that can only lose signal

A passive equaliser, strictly speaking, amplifies nothing. Its filter section is nothing but a network of inductors and capacitors — resonant LC circuits — with no active component anywhere in the audio path. The network works by varying impedance: it attenuates parts of the spectrum, and what you hear as a "boost" is really everything else being pulled down.

That elegance comes at a brutal price. On a Pultec EQP-1A, the filter network and the resistive divider formed by the pots cost roughly 20 dB of insertion loss, right across the spectrum. Before the Pultecs came along, that was precisely what made equalisers unusable: anything passing through them came out quieter.

The stage that gives the decibels back — and signs the sound

Eugene Shenk and Ollie Summerland, at Pulse Techniques, had the idea of placing a tube gain stage behind the network to hand back exactly what had been lost. The result is a unity-gain box: no loss, no gain.

The consequence is far more interesting than the trick itself. On an EQP-1A, every setting you dial reaches the output after passing through two triodes and three transformers — and no knob position takes them out of the path. The famous "Pultec sound", the one engineers describe by patching the unit in set flat, doesn't come from the curves: it comes from that make-up gain stage being permanently in circuit. A passive tube EQ colours the signal even when it isn't equalising.

From Abbey Road to a $24,000 rack unit

The other great lineage in this field is British. At EMI it starts with the RS56 in 1954, runs through the TG12345 in 1969, and arrives in 1972 at the TG12412, installed alongside Abbey Road's first TG12410 transfer desks. Four bands, twenty selectable frequencies, five curve shapes per band — low shelf, blunt, medium, sharp bell, high shelf — and one detail that always comes up from the people who use them: the frequency points are built on the note C, spaced in half and third octaves. Abbey Road's mastering rooms 5, 6 and 7 still work on those desks today.

The contemporary, extreme version of that genealogy is the Vacuvox DQ-95, built in the Netherlands, which borrows from the TG12412, from a rare 1950s Decca equaliser and from a Klangfilm output amplifier. Passive network, ECC81 buffer, ECC81 and EF86 make-up gain, four parametric bands switchable between bell and shelf, optional M/S processing — and, according to Vintage King's listing, eight tubes, nine transformers, twenty-six inductors, thirty-two switches and over a thousand parts, for $24,495. We don't carry it: it's here as the upper bound, to put everything else in perspective.

What passive designs simply cannot do

A passive network is bound by its own physics. Inductors have losses — wire length, magnetic core — and those very losses are what cap the achievable Q factor. In other words: a passive equaliser produces broad curves, and only broad curves. You cannot carve a surgical notch into a 40 Hz resonance with one. On a master, that inability is a feature: it stops you making the wrong move. On a track that needs repairing, it's simply the wrong tool.

There is a second route to those broad, musical curves, and it heads in the opposite direction. The Baxandall topology places the filters inside the negative feedback loop around a gain stage: it is an active circuit. Q sits around 0.5, slopes are very gentle, phase shift is minimal and harmonic distortion very low — and unlike a passive network on its own, it boosts and cuts symmetrically. Same musical goal, opposite means: where the passive tube design embraces its colouration, the Baxandall aims for transparency.

What's in our racks, and what each one is for

The Gainlab Empress (€2,799) is the most direct way into this sound. It's a modern reading of the passive Pultec equalisers, in stereo and in 2U, adding a parametric mid band to the classic low and high curves — the piece the original design was missing. Victor's verdict on the product page is blunt enough: "A modern, complete take on the Pultecs, with genuinely useful additions and a very welcome mid section."

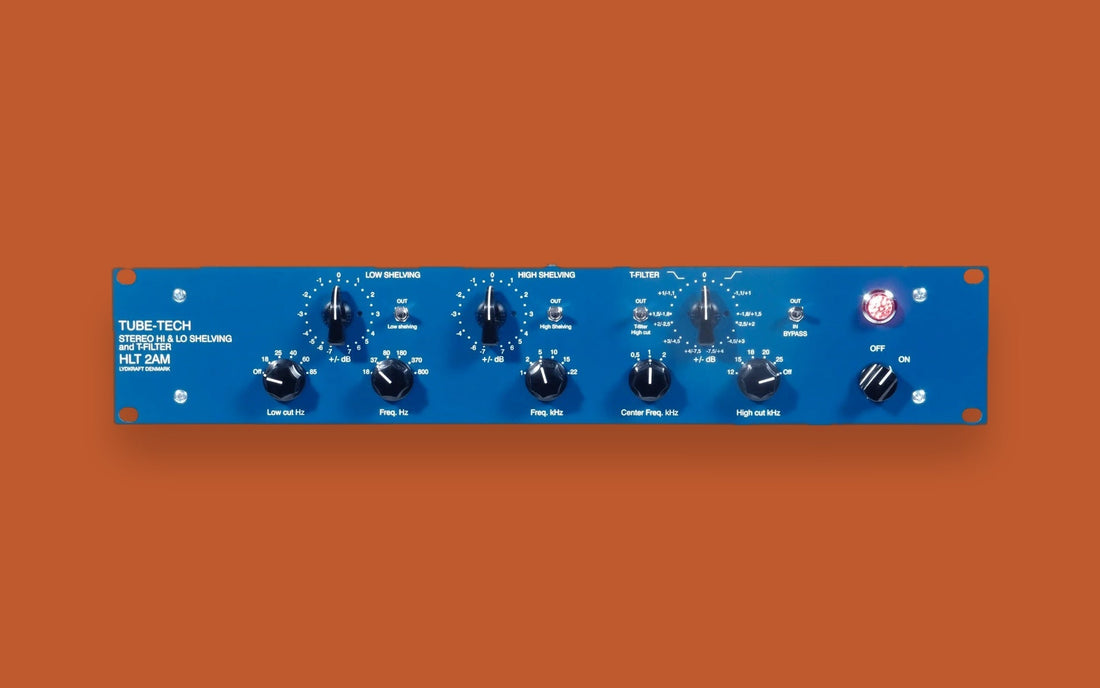

The Tube-Tech HLT 2AM (€4,649) is the closest thing here to the mastering-desk spirit described above. Active/passive architecture with transformers and tube stages (2× ECC82, 4× ECC83), low and high shelving at ±12 dB, low-cut and high-cut filters, and above all a Tilt filter that lifts the treble while pulling the bass down — precisely the global gesture you reach for on a master. Every control is stepped, with tight left/right matching: settings are recallable, which is non-negotiable in mastering. The HLT 2A (€3,890) offers the same approach with continuous controls, better suited to mixing.

The Hendy Amps Michelangelo (€3,699) is the option that fully commits to colouration. All-tube, class A, hand-built by Chris Henderson, it's as much a harmonic generator as an equaliser: the AGGRESSION control pushes the circuit's drive, and the LOW / MID / HIGH bands add harmonic content as you bring the gain up. One detail that matters for mastering work: there's a "1/3 gain" version whose EQ ranges are cut to a third, specifically to keep you from making oversized moves.

The Dangerous Music BAX EQ (€3,799) is the exact counterpoint to everything above. The first professional equaliser built around Baxandall curves, it plays the transparency card: very wide Q, cut and boost limited to ±5 dB in 0.5 dB steps, eight selectable frequencies at both ends, stepped pots, and phase-coherent seven-position high-pass and low-pass filters on relays. When you want the broad gesture without the tube signature, this is the one.

• You want the Pultec sound at the best price: Gainlab Empress.
• You master and you need exact recalls: Tube-Tech HLT 2AM.
• You want colour and harmonics, not correction: Hendy Amps Michelangelo.
• You want broad curves with no colouration: Dangerous Music BAX EQ.

Availability and pricing

The Gainlab Empress and the Tube-Tech HLT 2A / HLT 2AM are available to order from the shop. The Dangerous Music BAX EQ is on pre-order, shipping within 5 days of payment. The Hendy Amps Michelangelo ships from the United States: allow roughly 8 weeks after payment, and let us know which version you want (standard, 1/3 gain or stepped) when you order.

Prices shown are inclusive of VAT, as displayed on the product pages. The ex-VAT figure depends on the applicable VAT rate, which varies with your status and delivery country — get in touch if you need an ex-VAT quote.
