This 17VAC transformer is the original power supply for the JDS Labs Element IV. It can also be used safely with the Element III, Atom Amp+ and Atom Amp 2. Use it to replace a lost or damaged supply, or to keep a spare at a second setup.

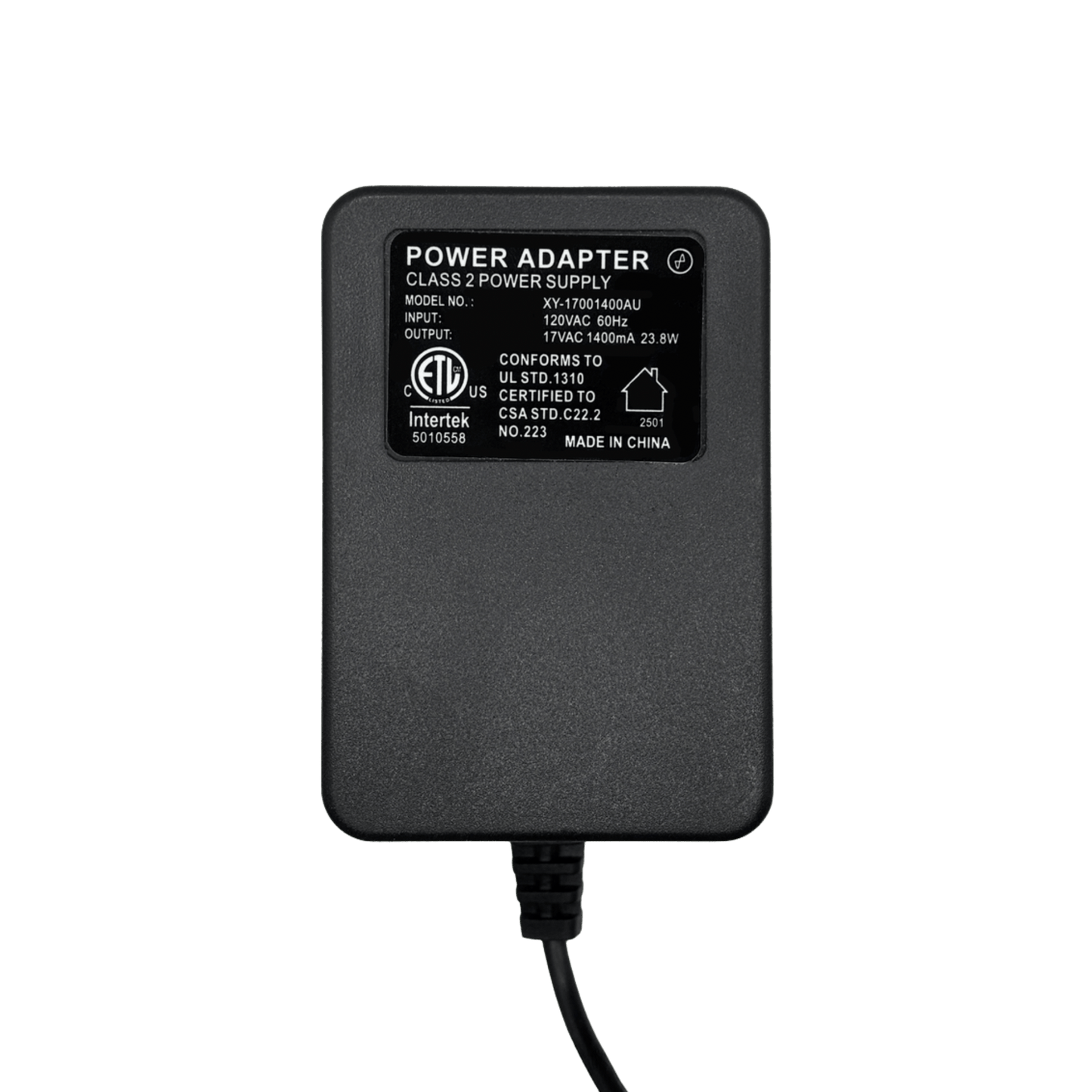

The exact model number and compliance certifications are shown on the power supply label and vary by plug and region.
An AC output
This adapter delivers an alternating voltage (VAC), not a DC one. The JDS Labs units concerned are designed for this type of supply and handle rectification and regulation themselves. A generic DC adapter, even of a similar voltage, is therefore not a substitute.
Four plug versions

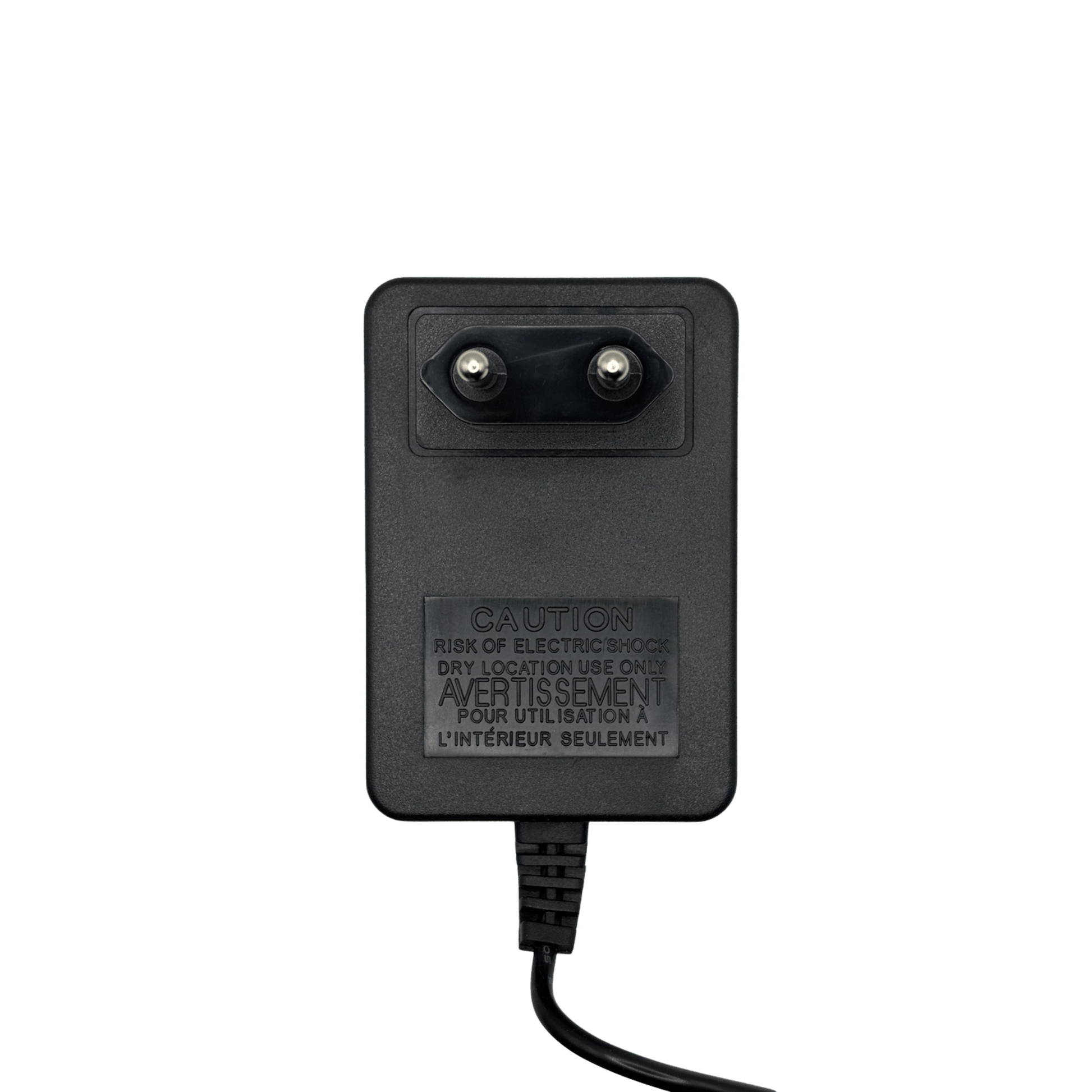

EU: 220–240 VAC

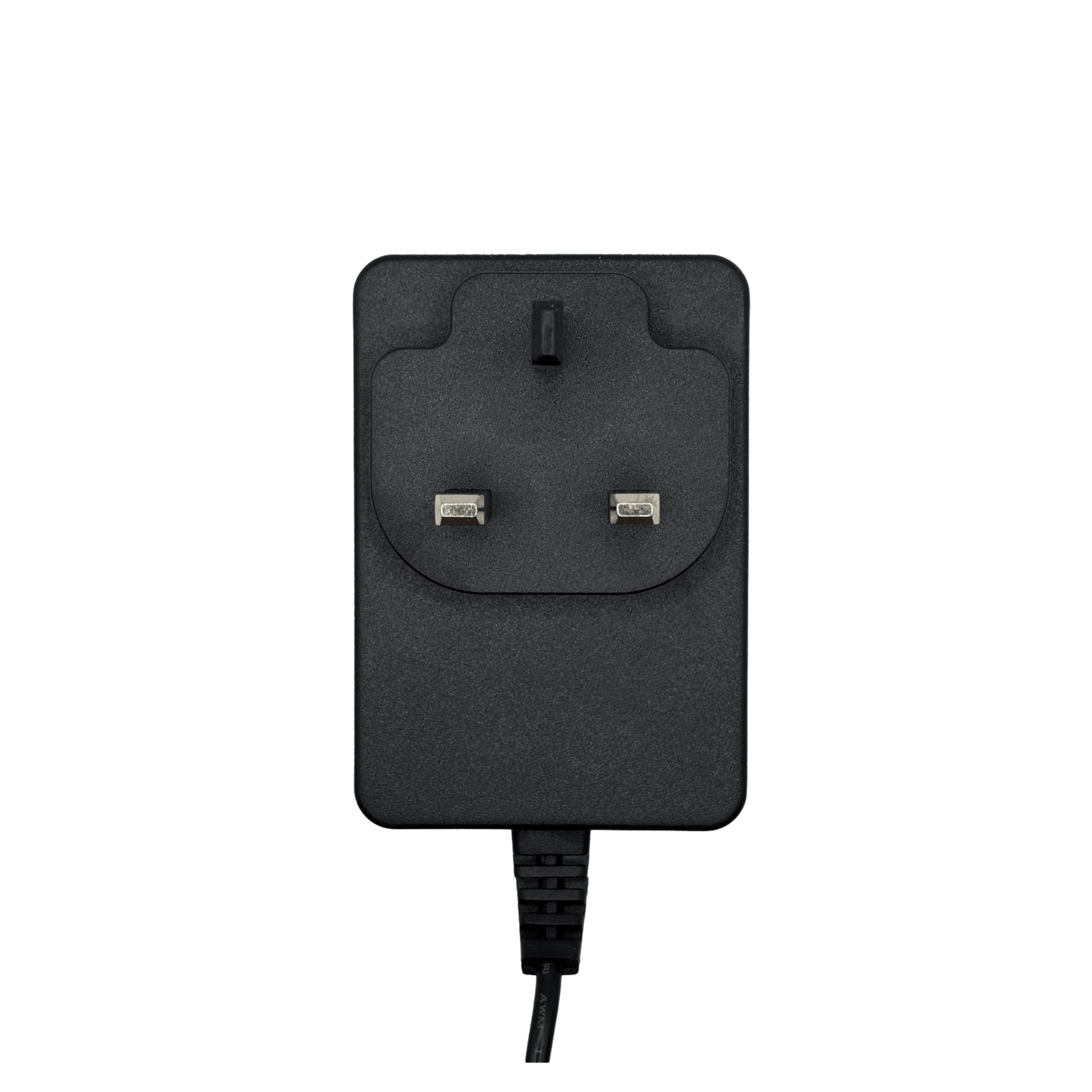

UK: 220–240 VAC, Type G plug

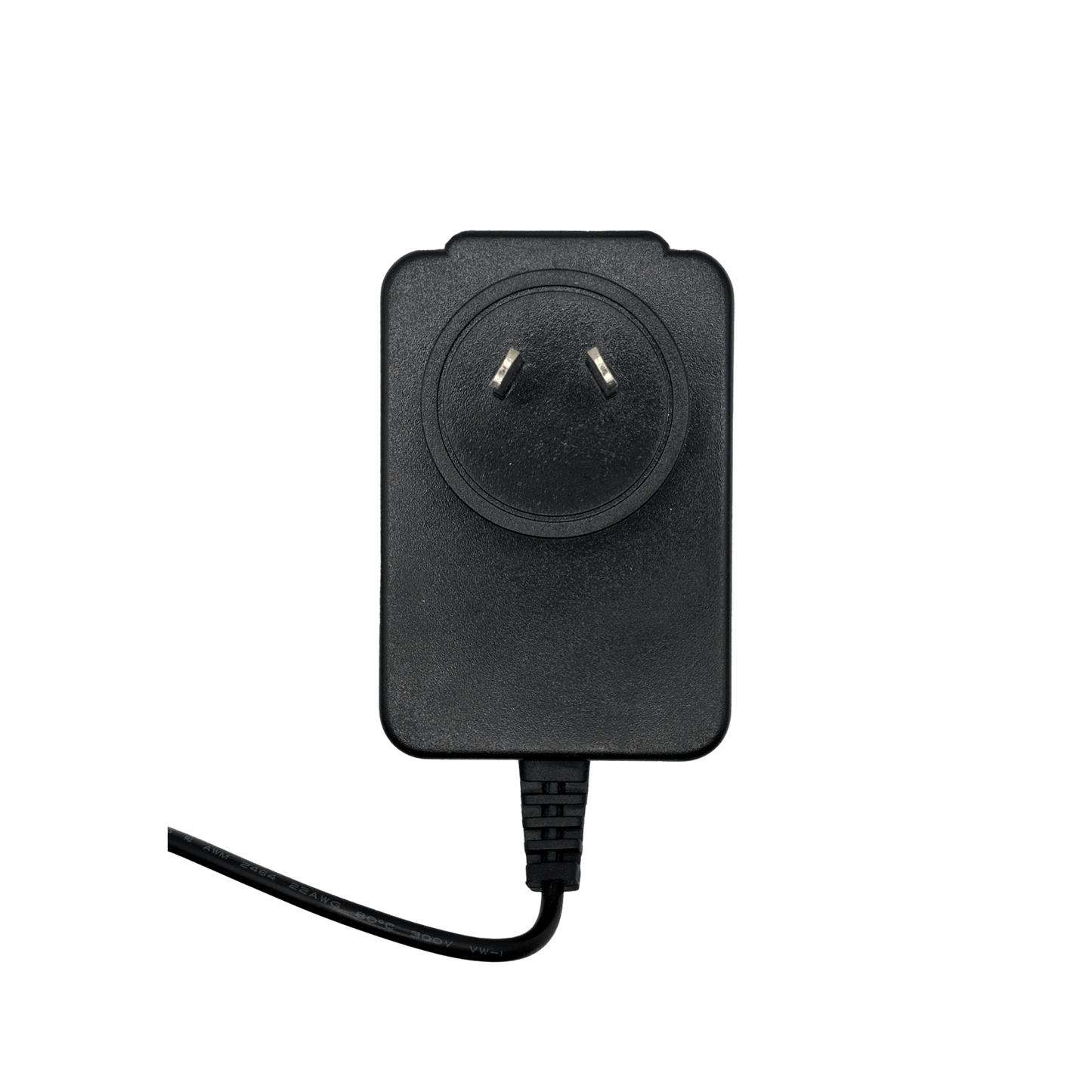

AU: 220–240 VAC, Type I plug¹

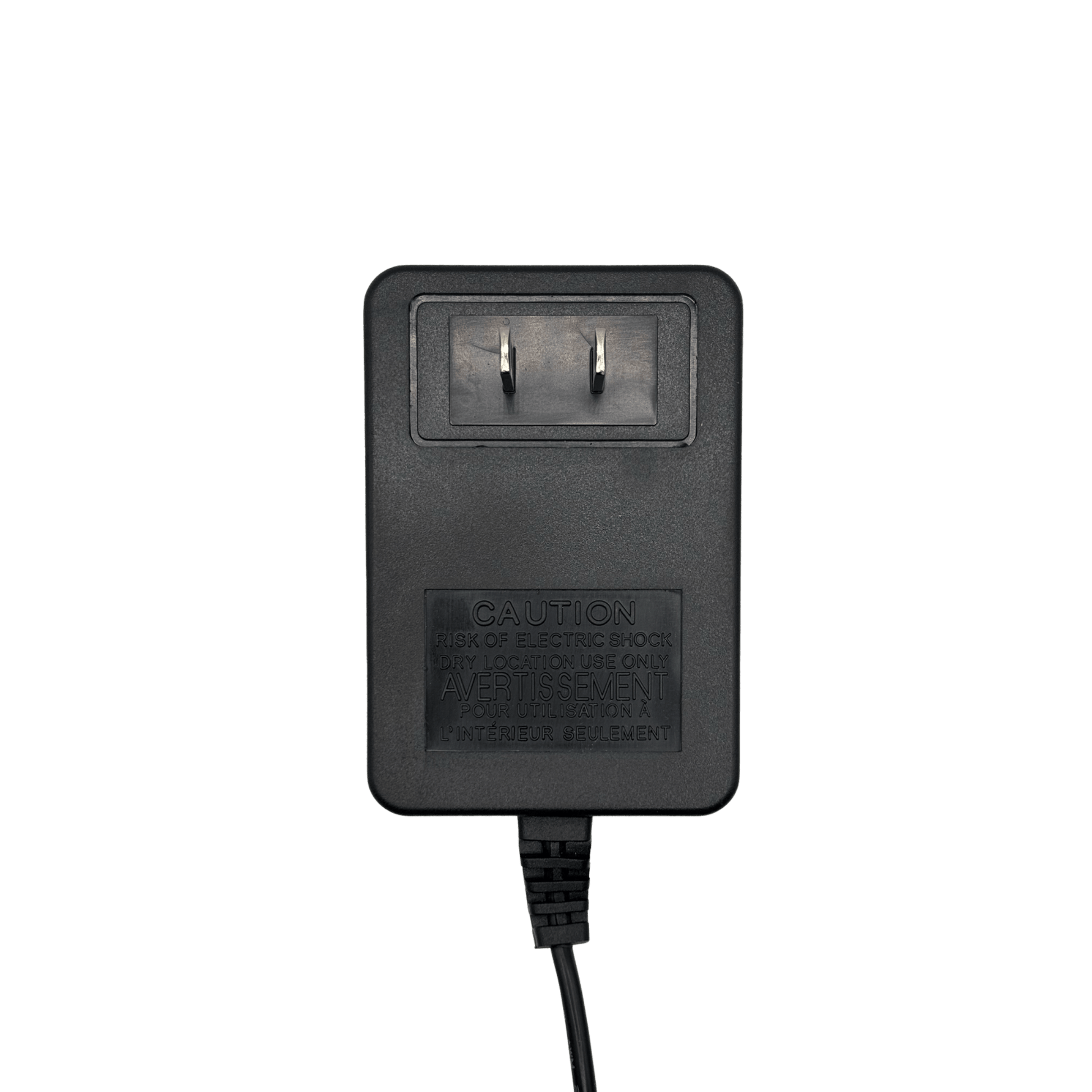

US: 120 VAC, Type A plug
Choose the version that matches the mains supply where the unit will be used. In France, that is the EU version.
Specifications
Input voltage (US): 120 VAC
Input voltage (EU, UK, AU): 220–240 VAC
No-load output voltage: 20 VAC at 0 mA
Nominal output voltage: 17 VAC at 1400 mA
Output current: 1400 mA
Cable length: 6 ft (approx. 1.83 m)
Connector: 2.1 x 5.5 x 12.0 mm barrel plug
¹ Power supplies for Australia are marked "XY-16001500AS". The supplier confirms that the actual output is 17 VAC.
